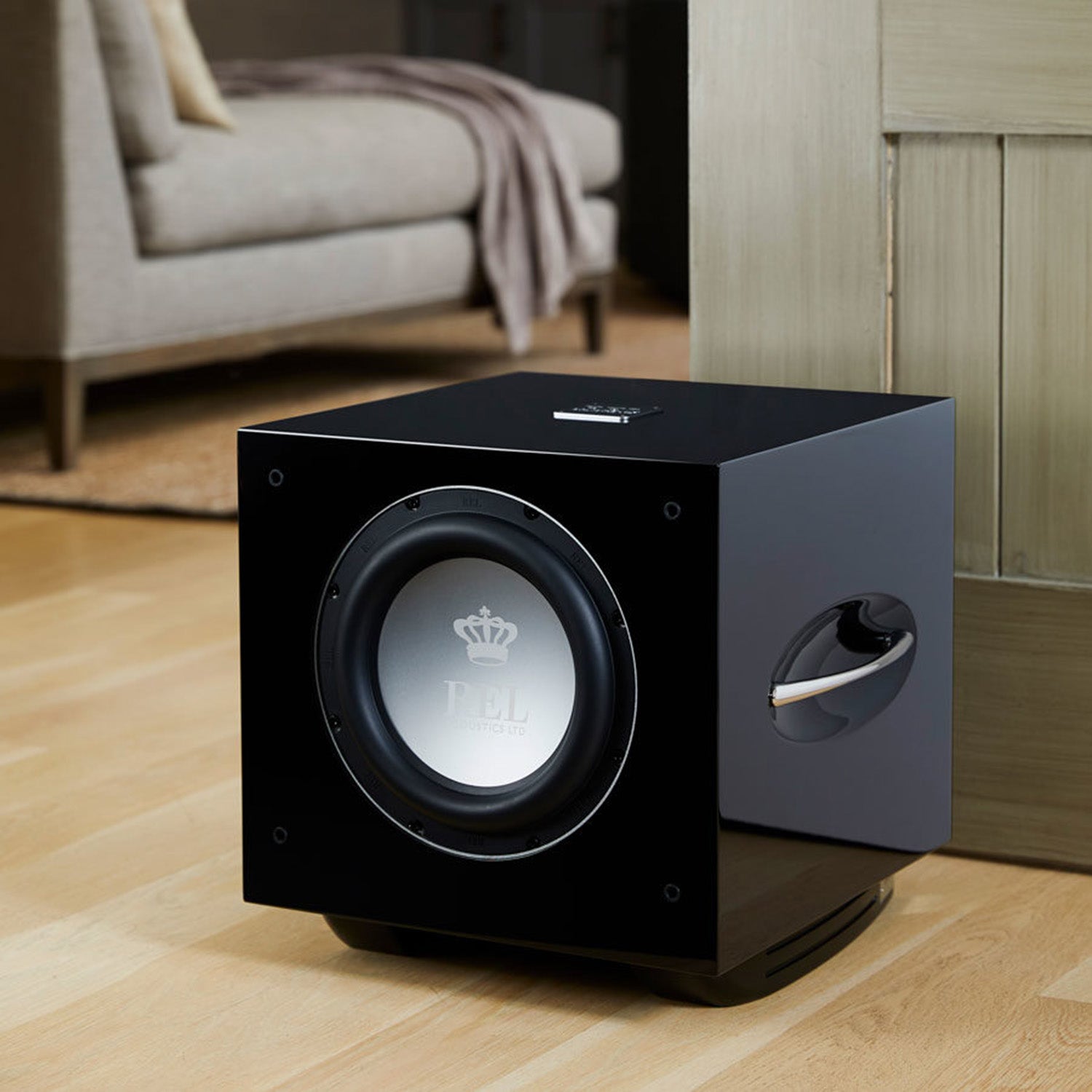

Rel S/510
Country
24 hour support
Payment options
REL subwoofers
"A master in his field"
REL Acoustics is an English company that manufactures subwoofers and nothing but subwoofers.
From their early beginnings, which stretch back more than 30 years, they have focused exclusively on producing the best subwoofers possible.
What makes REL subwoofers so special is that they are primarily manufactured for use in a traditional two-channel stereo set-up.
REL was among the absolute first to realize how important a properly built and properly calibrated subwoofer could be when integrated into a general stereo system.
Until now, the use of subwoofers was mainly perceived as an instrument for use in home cinemas, or as an aid to smaller stereo speakers that were not able to provide the necessary bass reproduction themselves.
REL immediately had a different approach to the use of the traditional subwoofer which was radically different from the norm.
The fact remains that most subs generally just stand in a corner and hum and rumble without a proper integration with the rest of the system.
So as a necessary evil with the sole purpose of creating deep and resounding bass.
This has to a certain extent helped to create the stereotypical perception of what a subwoofer should and can be used for.
REL Acoustics subwoofers, on the other hand, are created for something completely different.
Of course, they also have their justification in the traditional multi-channel system, but when they are used as intended, i.e. for stereo use, then it really starts to make sense.
The effect of using a REL subwoofer correctly is much more than just more bass.
With correct setting and placement, there is an enormous improvement in several of the most important parameters. The effect can be heard far up into the critical midrange, where a much fuller, open and dynamic reproduction is achieved.
In addition, the usual virtues such as precision and "attack" are also highlighted... The timing becomes audibly better and this helps to create what we all seek. Just musicality.
The actual construction of a REL subwoofer must be said to be at the highest possible technical level, be it right from the manufacture of their totally sound-dead cabinets and on to their custom-made units which include the use of carbon.
REL subwoofers are active, i.e. an amplifier is built into the cabinet itself.
These built-in amplifiers have been developed and refined over many years, and there is no denying that.
This means that the primary stereo amplifier is not significantly stressed even at high sound pressures.
The so-called high output connection has a direct connection to the speaker terminals of the stereo amplifier….
This means that the signal is delivered at the same speed and signature that the primary stereo speakers are fed with. This is one of the secrets behind the seamless integration that can be achieved with a properly calibrated REL subwoofer.
With a REL subwoofer, it is possible to breathe new and rich life into an already good stereo set-up.
Even with a pair of well-grown floor speakers in the high-end class, the effect is quite striking.
We at the sound specialist have, over a number of years, built up some experience and expertise in the use of these fantastic REL subwoofers in stereo systems.
Come by for a demonstration of what we're talking about, and at the same time get an insight into how big of an upgrade the right subwoofer can be in your own system.
Specifications
TYPE
Front-firing active woofer, down-firing passive radiator

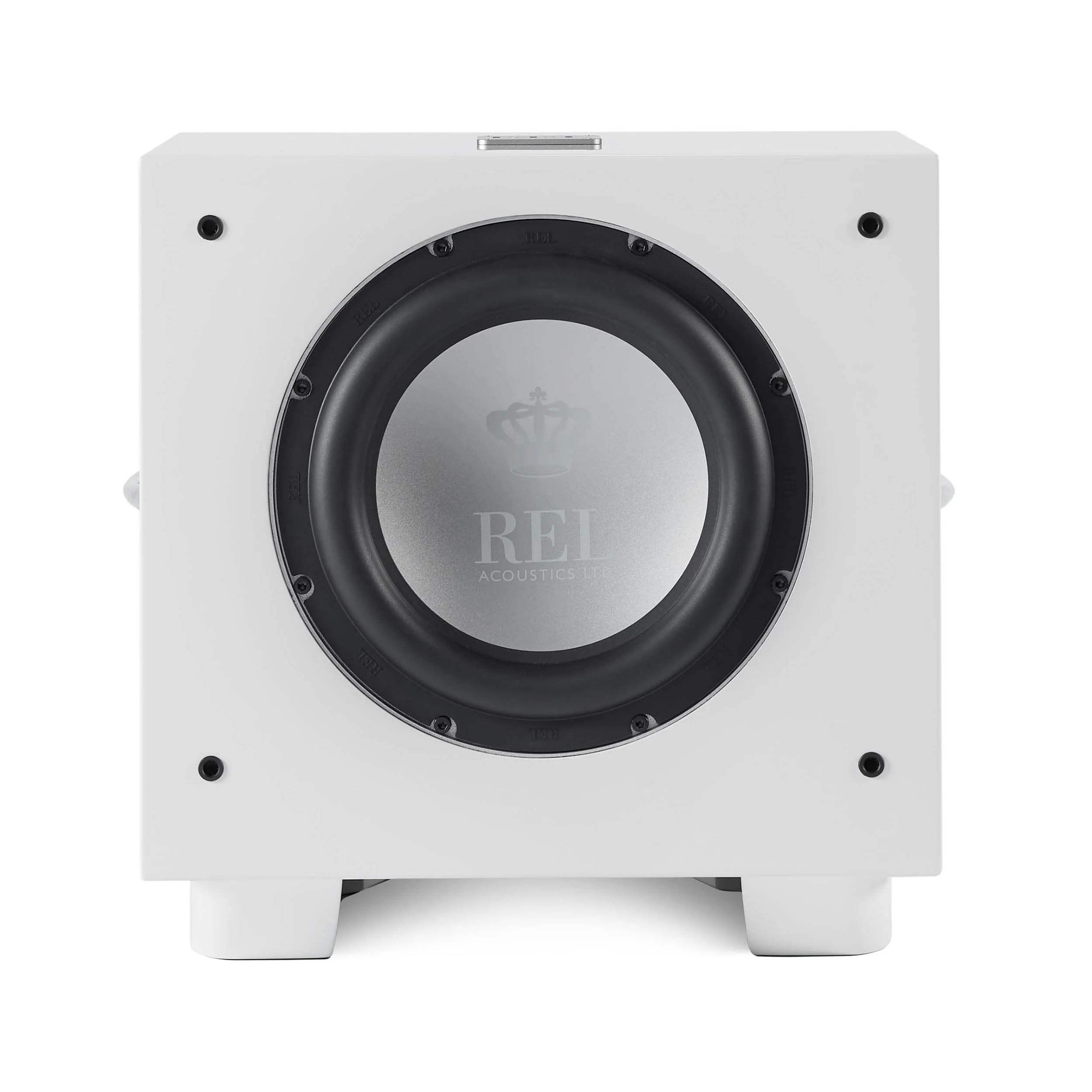

ACTIVE DRIVER SIZE & MATERIAL
10 in., 250mm long-throw, die cast aluminum chassis

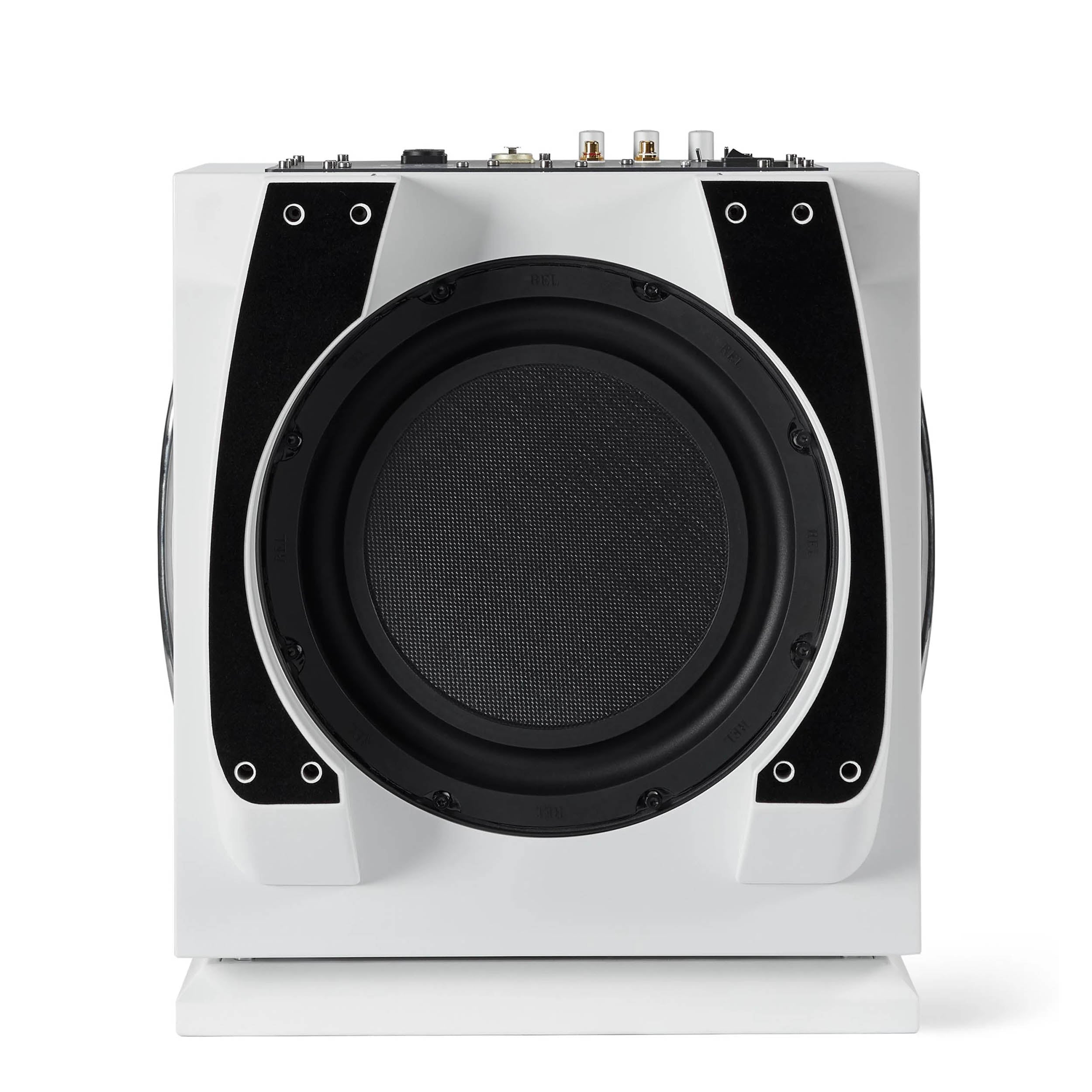

PASSIVE RADIATOR SIZE & MATERIAL
12 in., 300 mm
LOW FREQUENCY EXTENSION
-6 dB at 20hz

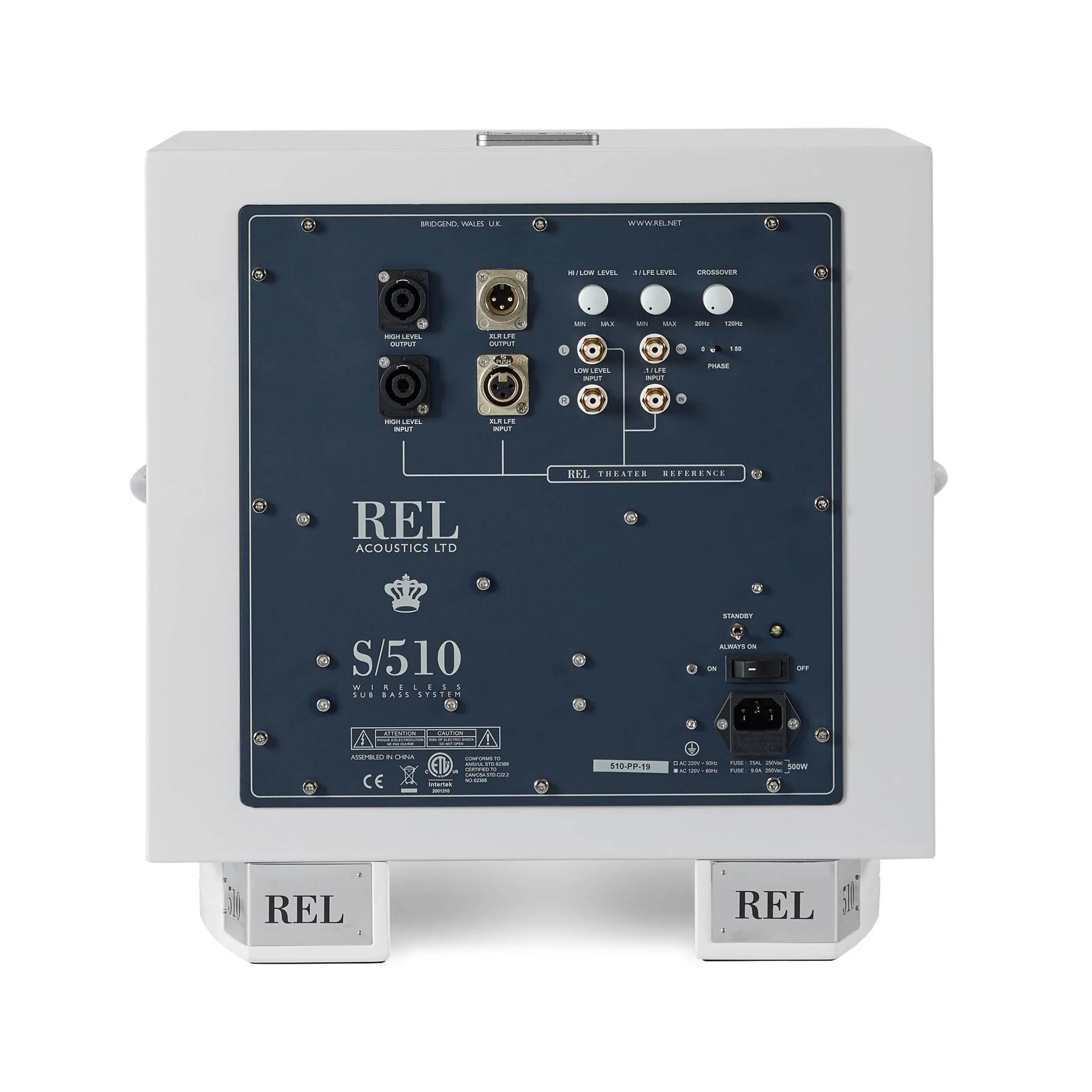

INPUT CONNECTORS
High Level Neutrik Speakon, Low Level stereo RCA, LFE RCA, LFE XLR
OUTPUT CONNECTORS
Hi Level Neutrik Speakon, LFE RCA, LFE XLR
POWER OUTPUT
500 watts (RMS)
AMPLIFIER TYPE
NextGen3 Class D
WIRELESS CAPABILITIES
Yes - REL AirShip system [required]. Sold separately.
Protection System
FULLY ELECTRONIC SET SAFE
Yes
DC FAULT
Yes
OUTPUT SHORT
Yes
MAINS INPUT VOLTAGE
220-240 volts, 110-120 volts for certain markets
FUSES
5 Amp semi delay 220 volt operation 9 Amp semi delay 120 volt operation
Dimensions
WXHXD
15.7 x 16 x 18.25 in., (400 x 410 x 464 mm) Add 1.75in (44.5mm) in depth when using Hi Level connector
NET WEIGHT
70 lbs. (31.7 kg)

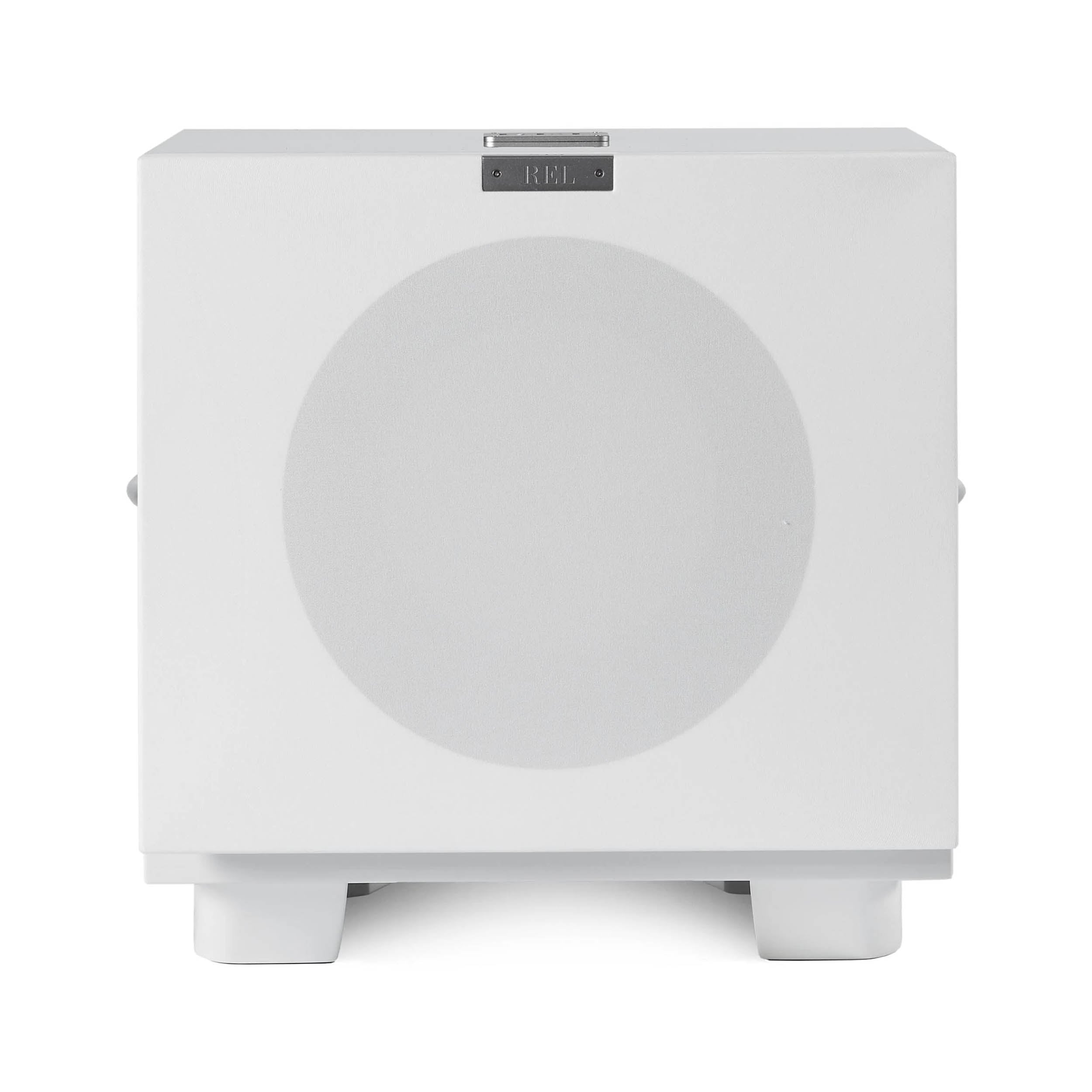

FINISH
Piano Black Lacquer, White Lacquer, 10 coats
Supplied accessories
MAIN LEAD
Yes
NEUTRIC SPEAKING
Yes
INTERCONNECT
USER'S MANUAL
Yes
