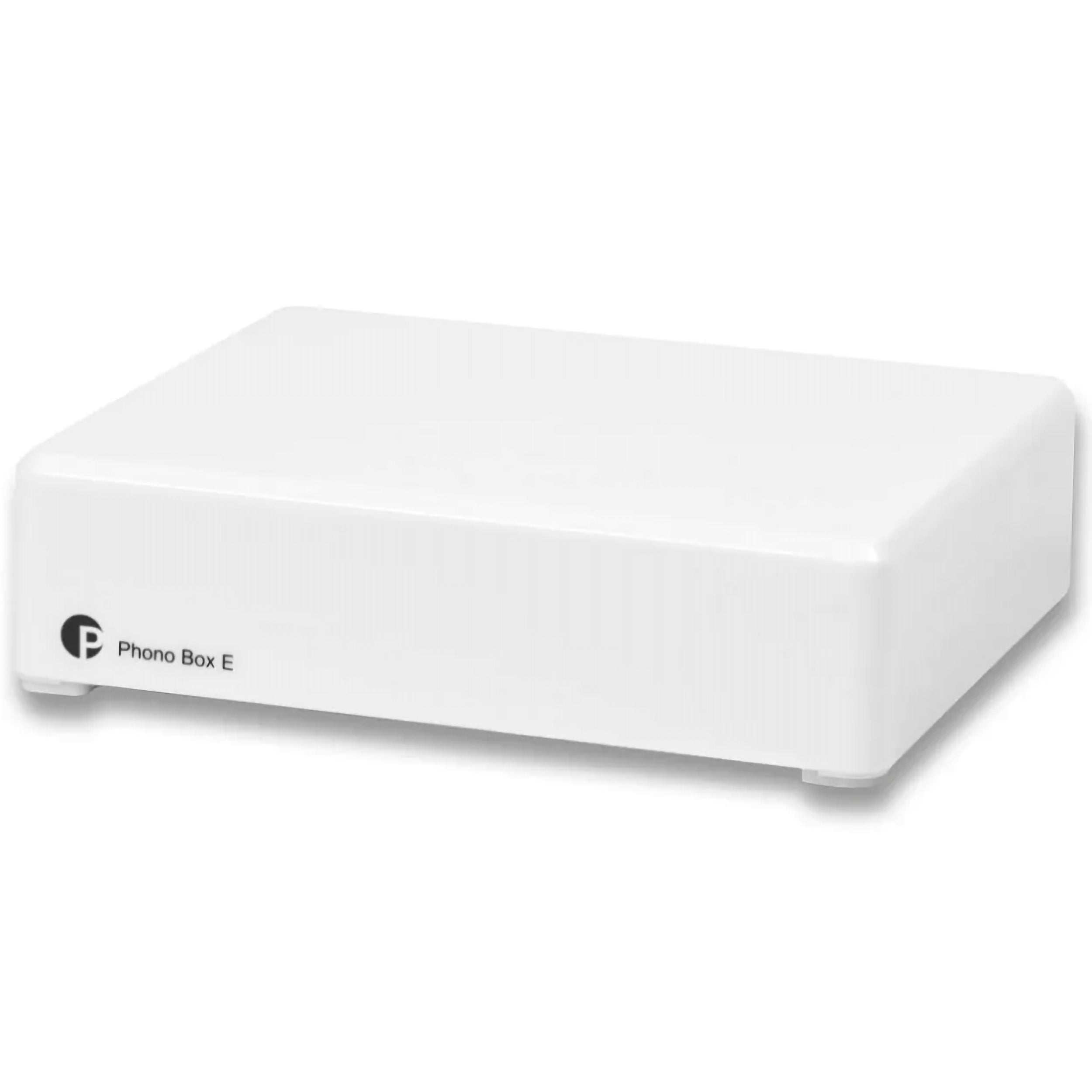

Pro-Ject Phono Box E

PRO-JECT PHONO BOX E – PHONO PREAMPLIFIER FOR MM CARTRIDGES

Pro-Ject Phono Box E is a compact phono preamplifier for turntables with an MM cartridge. It provides the necessary amplification and RIAA equalization when your amplifier does not have a built-in phono input, or when you want a separate solution for your vinyl system.

Phono Box E combines a low-noise circuit with internal shielding and gold-plated RCA connectors. This makes it a simple way to get more out of your turntable and your vinyl collection.

HIGHLIGHTS

• RIAA equalization and preamplification for MM cartridges
• 40 dB gain
• SMD circuitry with low noise and distortion
• Internal metal shielding against electromagnetic interference
• Gold-plated RCA connectors
• Compact enclosure for flexible placement
• External 18 V power supply
• Available in black or white

PRECISE RIAA EQUALIZATION FOR YOUR TURNTABLE

Pro-Ject Phono Box E is designed to give the signal from an MM cartridge the correct amplification before it is sent on to the rest of the system. The circuit provides 40 dB of gain and precise RIAA equalization with a specified deviation of no more than 0.5 dB from 20 Hz to 20 kHz.

At the same time, SMD components and an internal metal shield help reduce noise and protect the circuit from electromagnetic interference. This provides good conditions for a clean and detailed signal from the turntable.

COMPACT PHONO PREAMPLIFIER FOR FLEXIBLE PLACEMENT

The compact enclosure makes it easy to place the Phono Box E close to the turntable and thus keep the signal cable short. The inputs and outputs use gold-plated RCA connectors, while the external 18 V power supply keeps the power supply separate from the actual phono circuitry.

Connection is simple. The turntable is connected to the Phono Box E, after which the phono preamplifier is connected to a standard line input such as AUX, CD, or Tuner on your system.

A SIMPLE UPGRADE FOR YOUR VINYL SYSTEM

Pro-Ject Phono Box E is an obvious choice if your amplifier lacks a phono input and your turntable uses an MM cartridge. It combines the key functions of a separate phono preamplifier with a compact design that is easy to integrate into existing hi-fi systems.

The result is a simple and dedicated solution between turntable and amplifier, focused on correct RIAA equalization, low noise, and a clean signal from your vinyl records.
