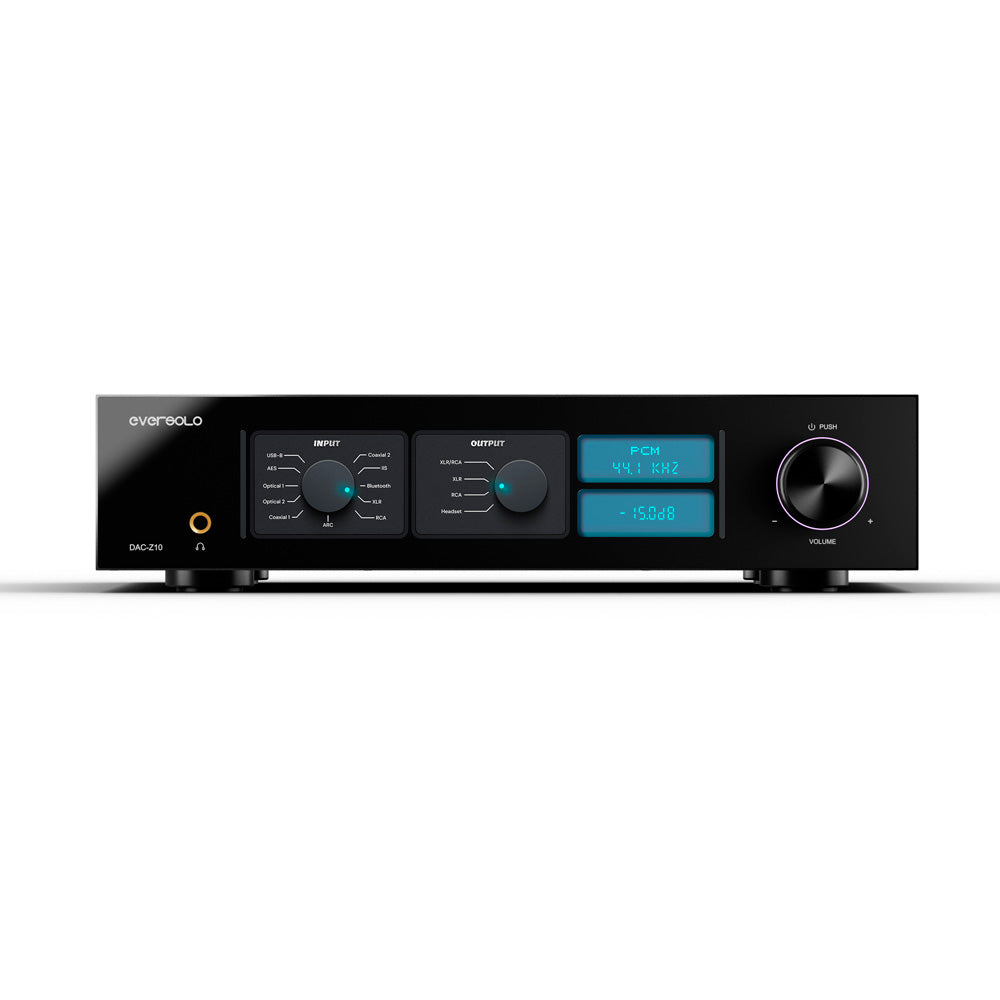

Eversolo DAC-Z10 – Pure sound, precision and power in perfect balance

The Eversolo DAC-Z10 is a combined DAC, preamplifier and headphone amplifier created for the audiophile who demands uncompromising sound quality and elegant functionality. Built on Eversolo's Fully Isolated Architecture (FIA), the digital and analog sections are completely separated - a design that minimizes electrical noise and preserves signal purity from source to speaker.

Highlights

• Fully balanced dual DAC design (AK4191 + AK4499)
• R2R volume control and three separate power supplies
• Supports DSD512 and PCM 768kHz/32bit
• OCXO clock system and external clock support
• Powerful headphone amplifier and HDMI ARC
• 8.8" IPS touchscreen and exclusive aluminum housing
• HDMI ARC/eARC: Integrate your DAC-Z10 directly into your home theater
• Bluetooth 5.1 (QCC5125): High-resolution wireless audio

Three independent power supplies – maximum stability

The DAC-Z10 uses three separate linear power supplies with individual toroidal transformers for the left channel, right channel and system. This isolation ensures extremely low noise – down to 42 μV – and delivers a quiet, precise and detailed soundstage.

Dual DAC architecture with AKM Velvet Sound™

The heart of the DAC-Z10 consists of two sets of AK4191 + AK4499 DACs, operating independently for each channel. The fully balanced construction combined with AKM's Velvet Sound™ technology delivers a perfect balance between analytical precision and natural warmth in the sound.

R2R volume control – precision in every nuance

The precise R2R resistance control ensures that the signal remains undistorted at all volume levels. Whether you play low or high, you get a natural and transparent reproduction with minimal distortion.

Fully balanced preamplifier

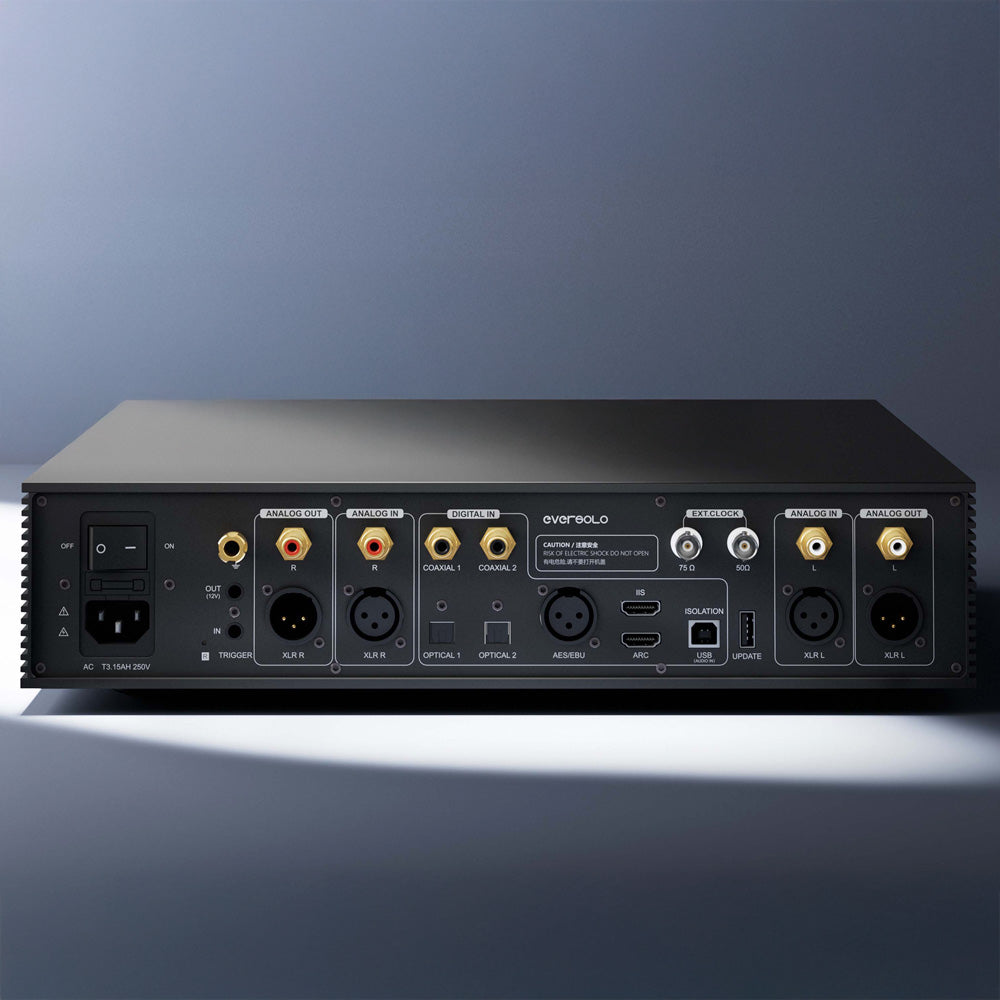

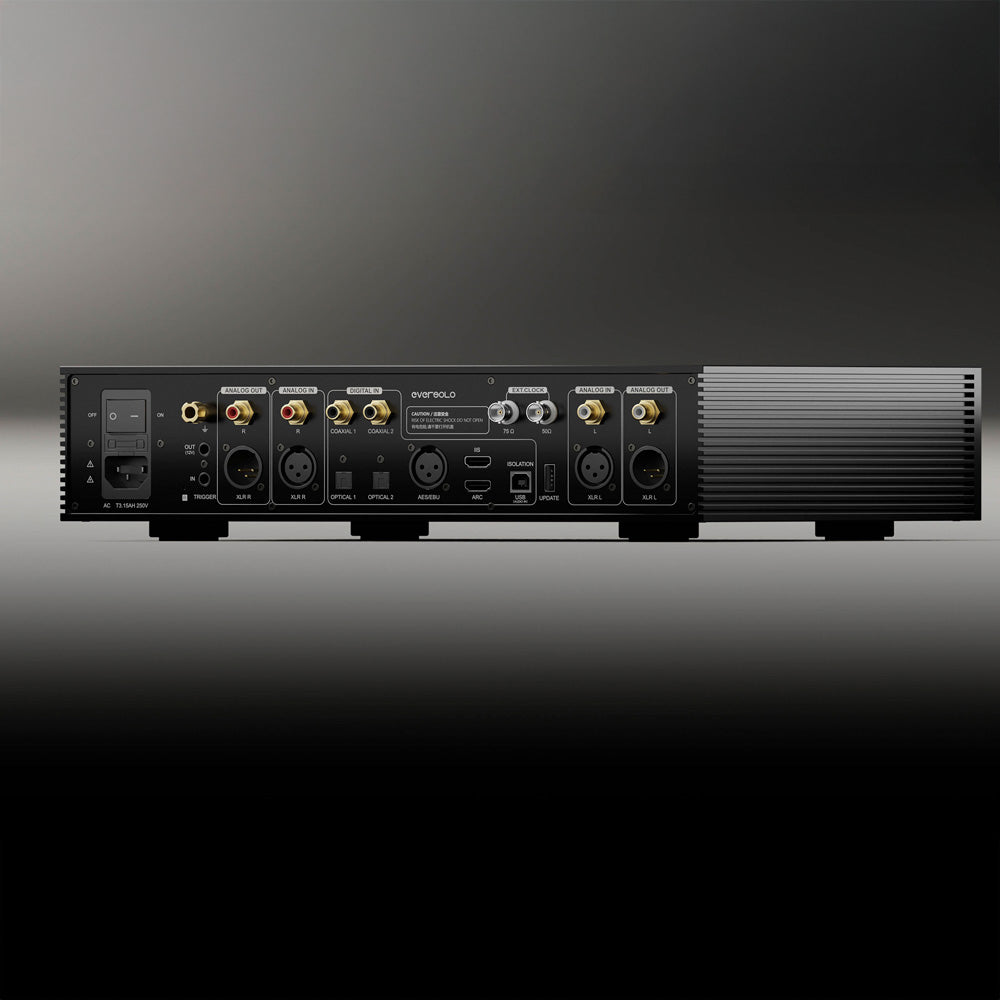

With both XLR and RCA inputs, +10 dB gain and a fully balanced analogue circuit, the DAC-Z10 delivers an audio experience with low noise, great dynamics and perfect control over the signal – ideal for both amplifiers and active speakers.

Eversolo Precision Core™ – uncompromising timing

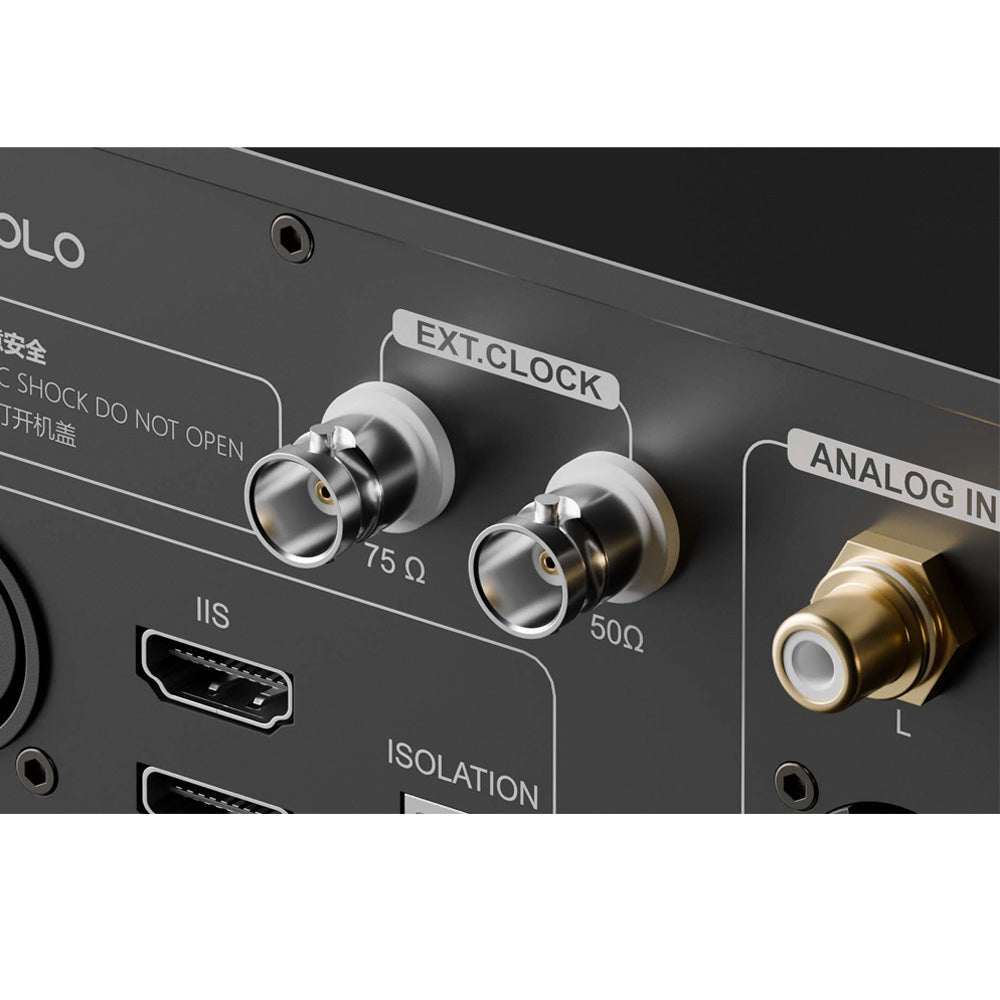

Thanks to an OCXO temperature-controlled crystal oscillator and Phase-Locked Loop (PLL) technology, the DAC-Z10 delivers extremely precise clock synchronization. It also supports external 10 MHz and 25 MHz high-precision clocks for even better timing and stability.

Powerful headphone amplifier

With a dedicated 6.35mm headphone output, the DAC-Z10 delivers up to 1W at 32Ω and auto-impedance adjustment. Three gain levels (low, medium, high) provide optimal control regardless of headphone sensitivity.

Design and user experience

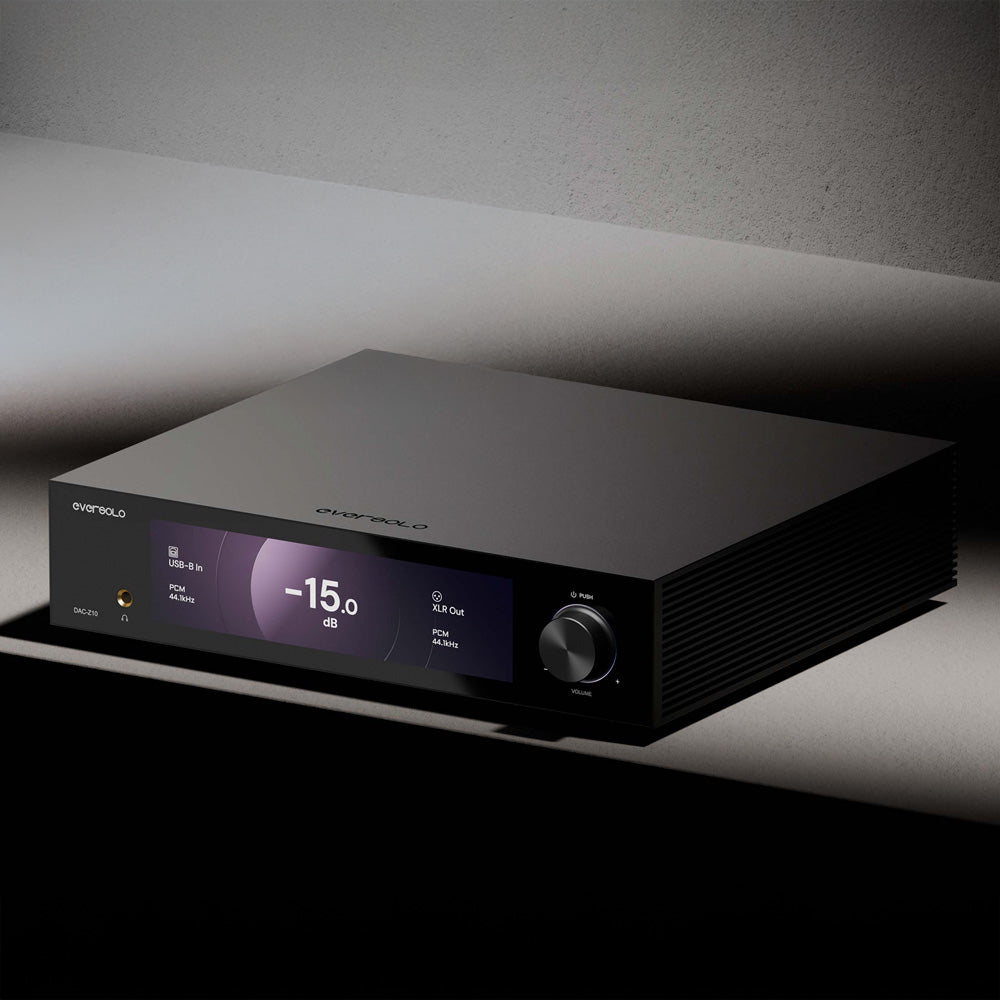

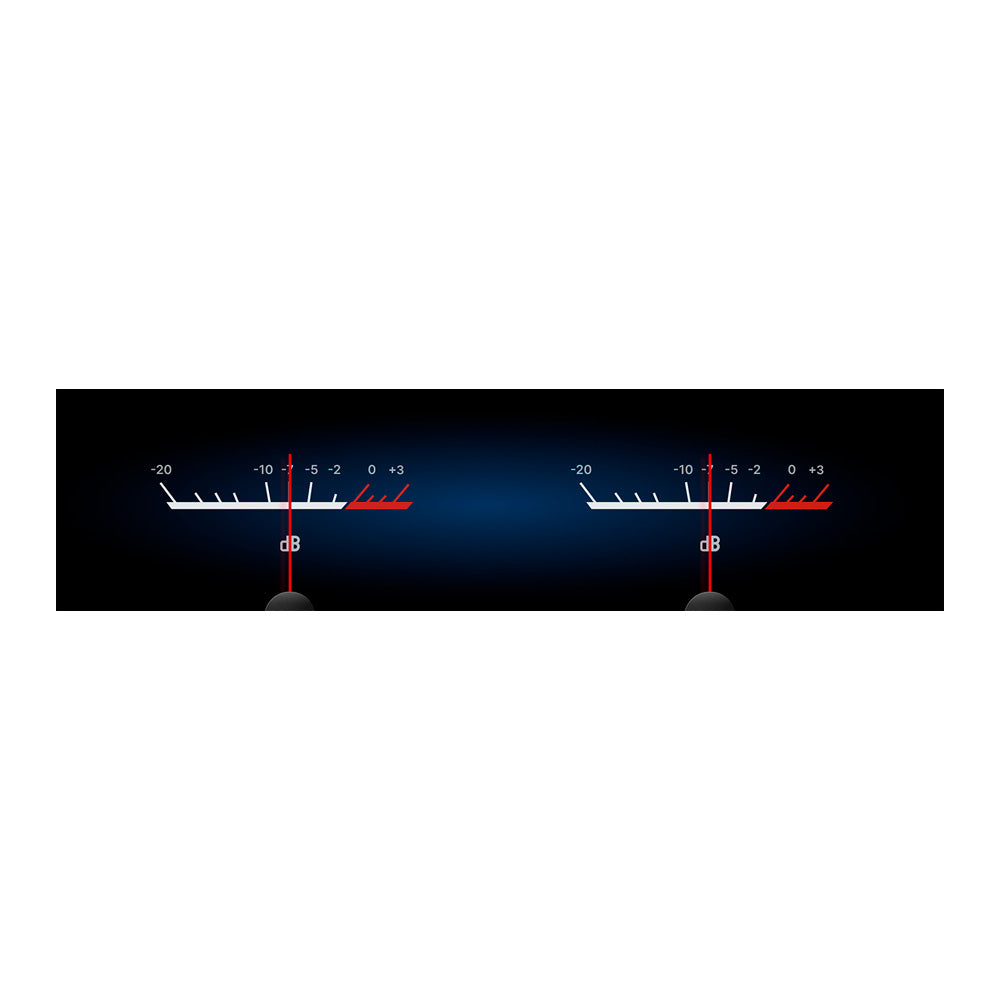

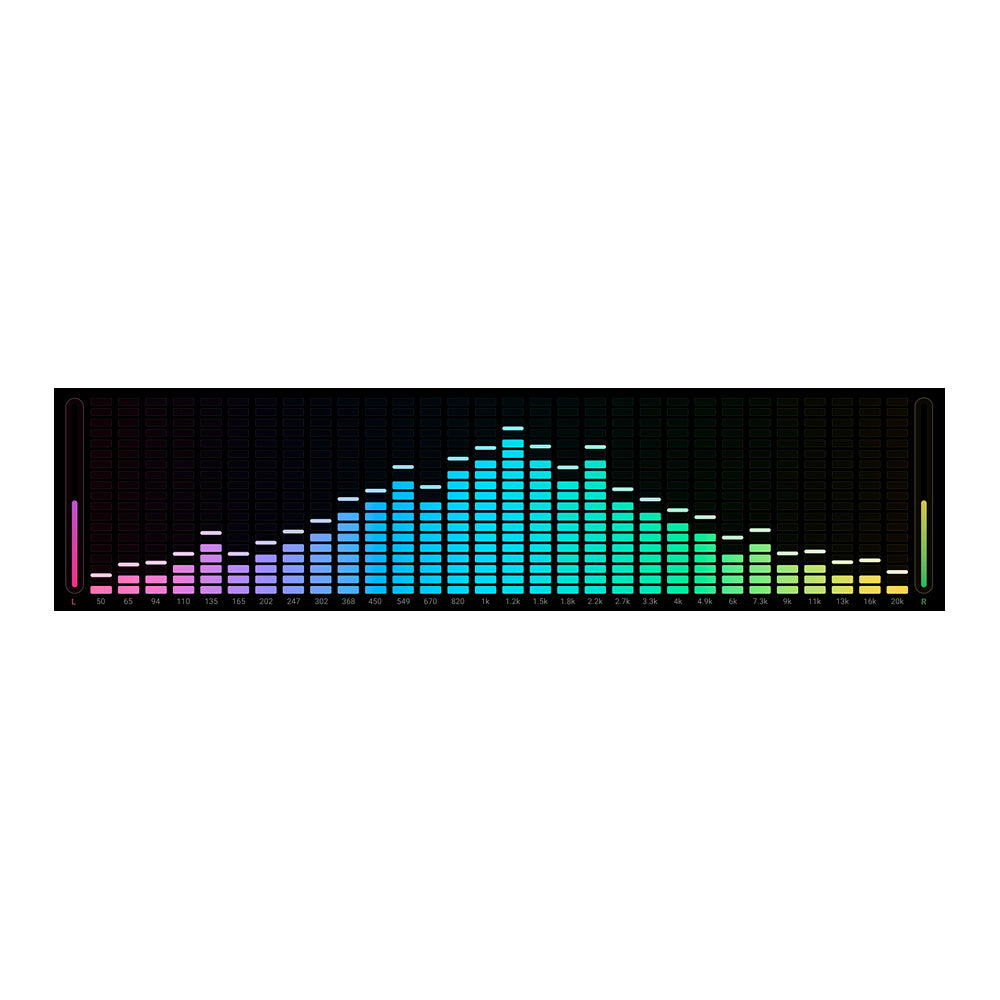

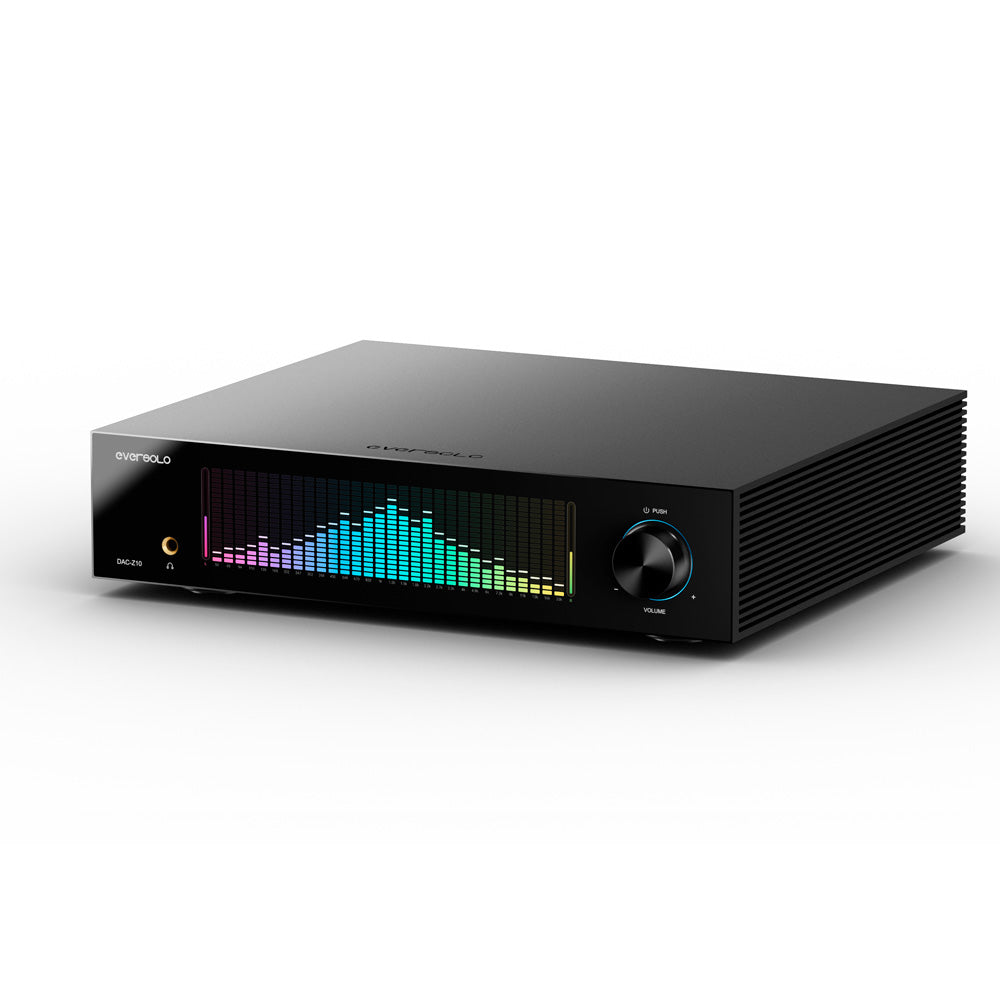

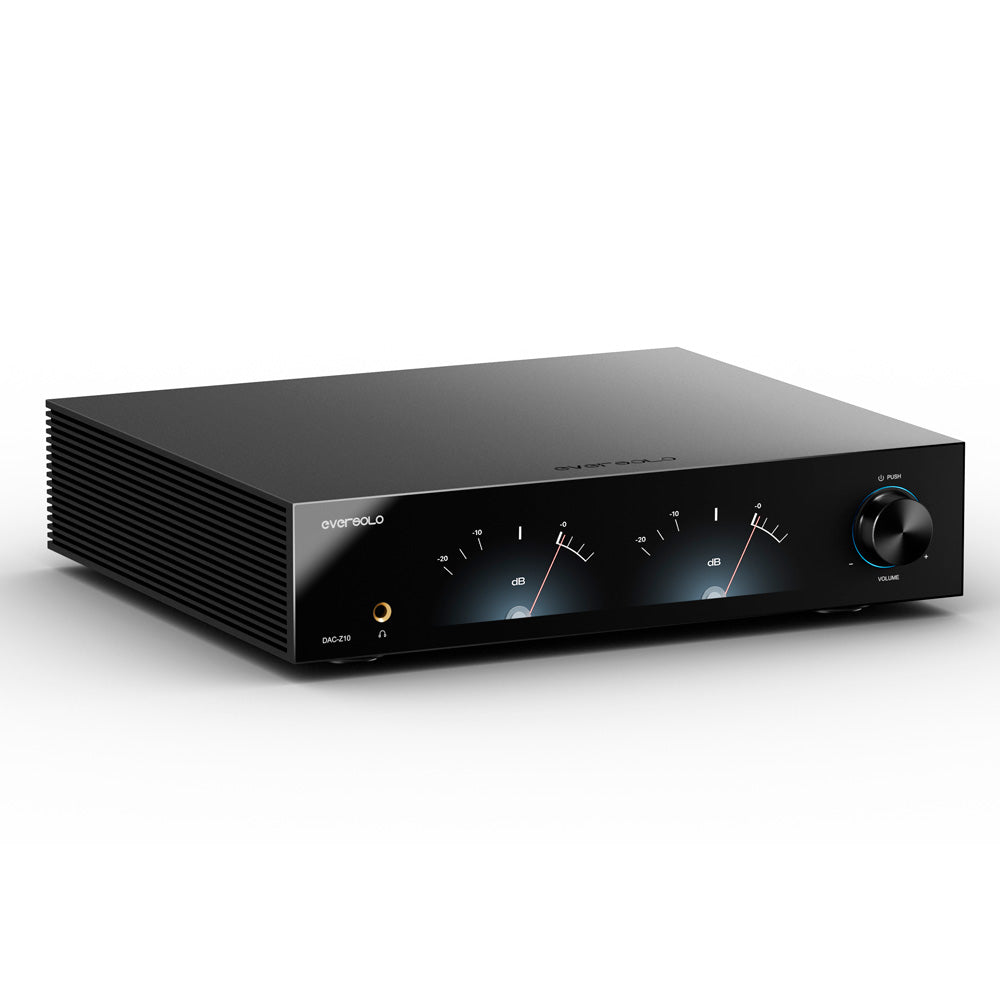

The DAC-Z10 is made of aircraft-grade aluminum and has an 8.8" IPS touchscreen with an intuitive interface. You can choose from several visual themes such as VU meters and spectra, making the audio experience both auditory and visual.

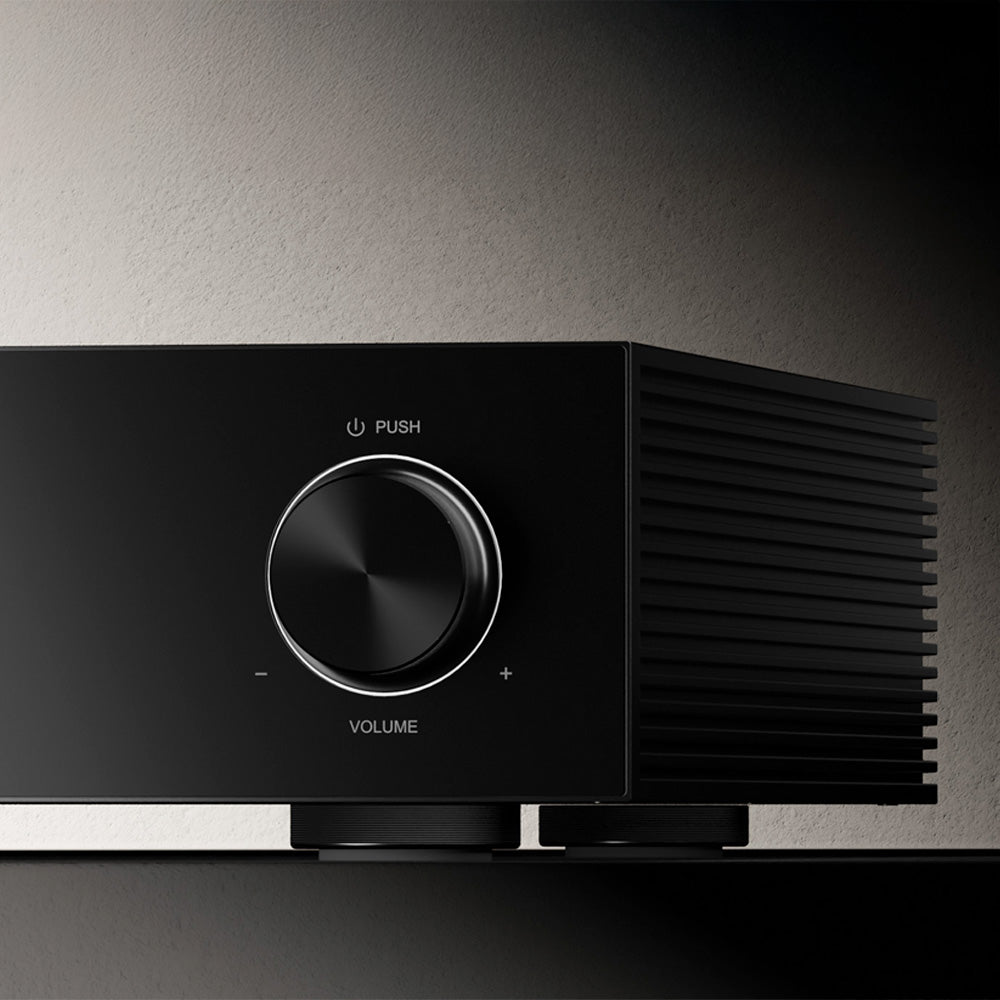

A solid volume knob design and the ability to choose the color of the control knob add a personal touch.
