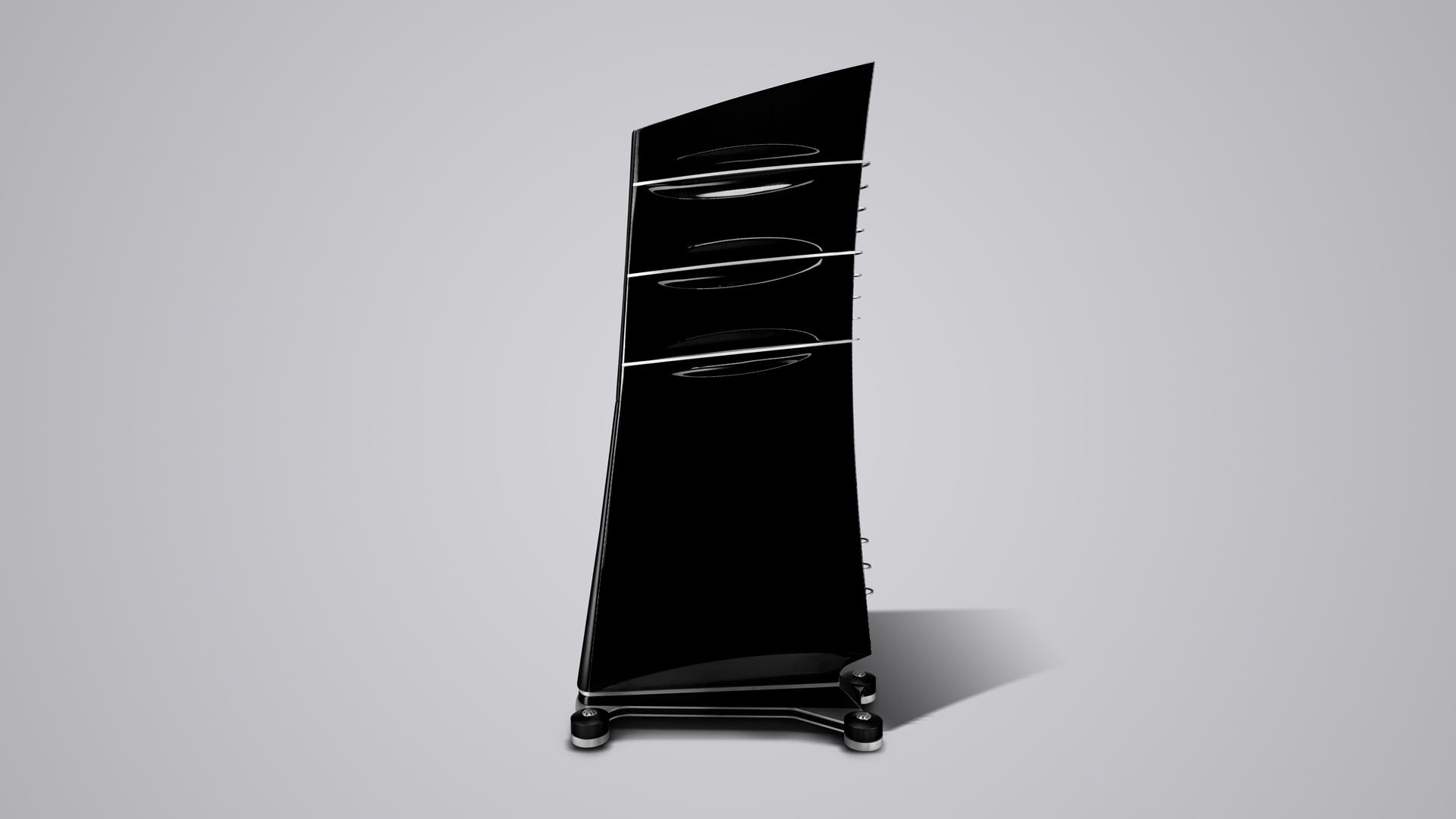

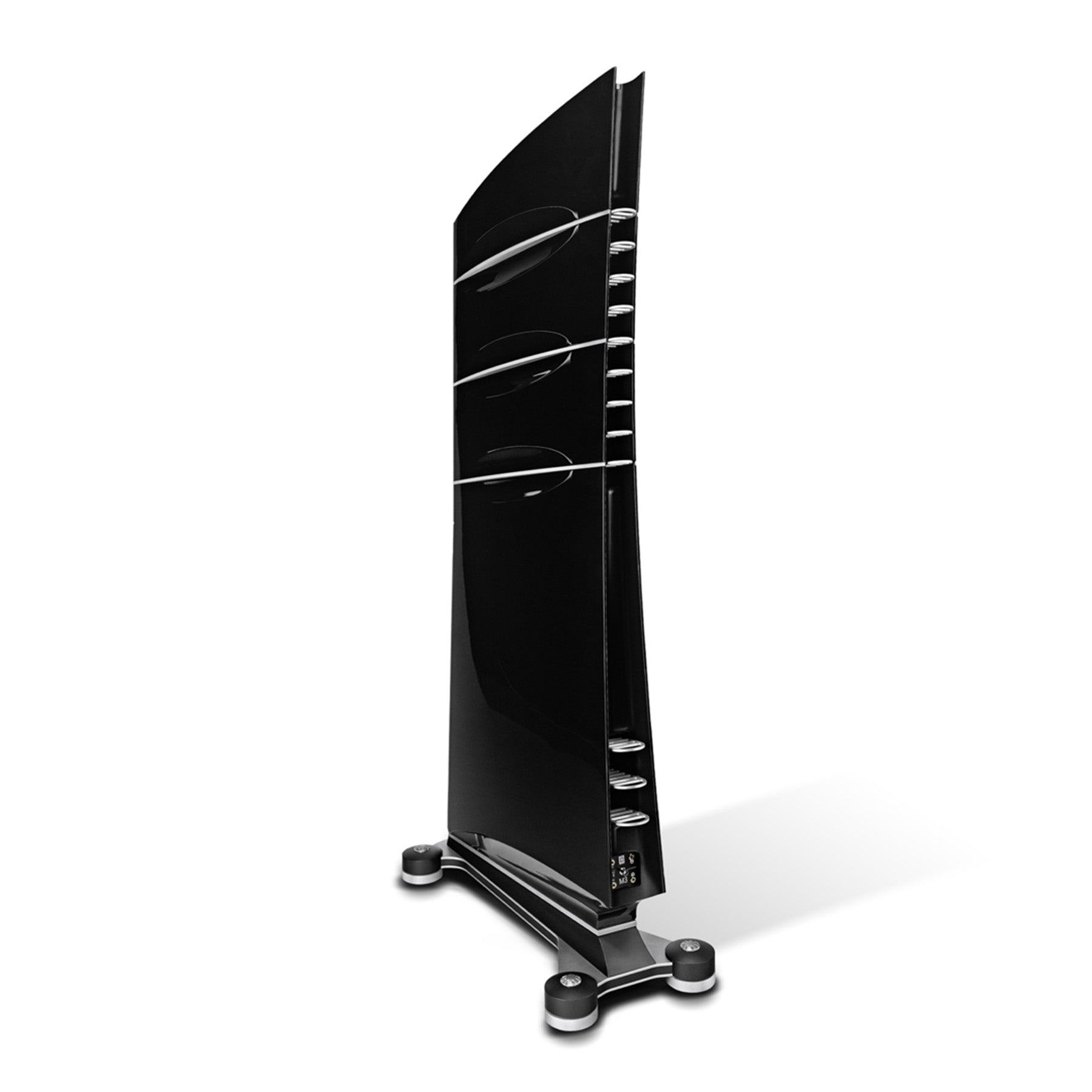

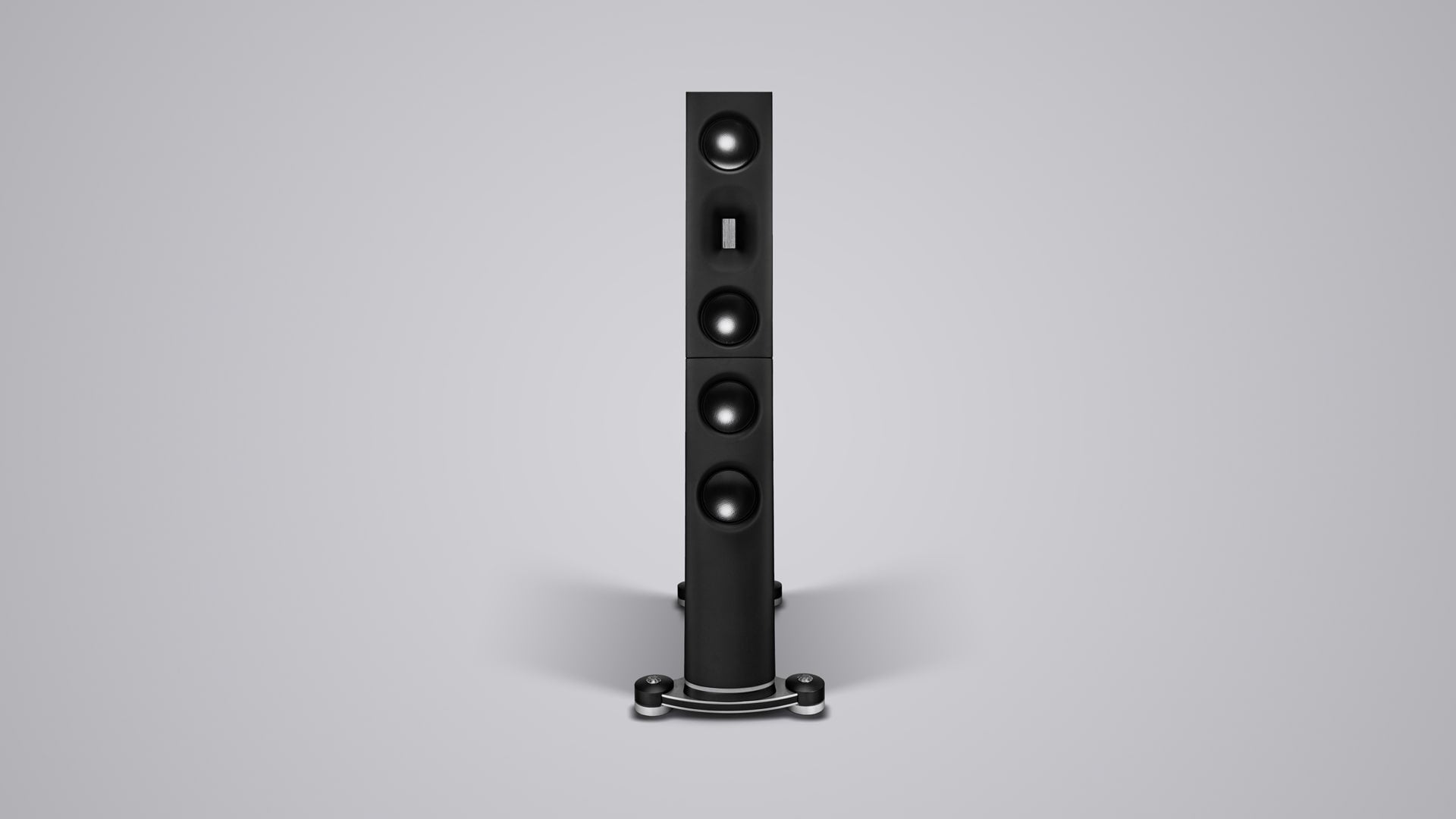

Børresen M3

Børresen M3 - Uncompromising high-end speaker with sublime sound quality

Børresen M3 is an uncompromising floorstanding speaker that reproduces your recordings with the utmost realism and authenticity. In the past, speakers have never been able to reproduce recordings with the same realism as a live concert, but with the M3 series, Børresen has transcended this boundary. Here you get exceptional sound reproduction in a slim and elegant design that stands as a testament to Børresen’s constant pursuit of perfection.

The mission of the M series is to challenge existing technological limitations and pioneer entirely new and unconventional areas of audio technology. This has resulted in a completely new design of speaker components, effective ways to combat resonance and vibrations, and materials that provide the ultimate properties to elevate sound quality to a level never seen before.

3D-printed basket in zirconium

The M3 speaker’s basket is a true revolution – it is a topology-optimized 3D-printed basket made of zirconium, ensuring maximum rigidity and therefore minimum vibration and resonance. The basket is not merely a placeholder for the diaphragm, because the energy generated by the diaphragm is also held by the structure behind it. The goal was therefore to eliminate noise from the basket by designing one with maximum rigidity. Studies were carried out using computer-optimized finite element design, resulting in a topology-optimized 3D-printed basket made from exclusive zirconium.

Børresen has not only designed a basket with extreme rigidity - they have also added important factors such as enormous internal damping and resonance control, resulting in extreme clarity in the overall performance. Thanks to the 3D printing process, the cavities are filled with zirconium powder, giving the basket additional damping properties. Zirconium is by far the best material choice, as it allows the basket to generate an incredibly natural sound.

A bass/midrange diaphragm with maximum rigidity and minimal noise

The diaphragm is designed to achieve maximum rigidity with minimal noise. The diaphragm for M3 is the most advanced and sophisticated speaker diaphragm on the market. The M3 diaphragm has the highest rigidity and the lowest diaphragm resonance. The technological demands for this unparalleled, world-class diaphragm performance made it necessary to design, develop, and assemble all components in-house. Michael Børresen and his team had to engineer a large number of different variants and models until they achieved their uncompromising goal of ultimate diaphragm performance for unprecedented sound quality.

The result is a diaphragm consisting of four laminate layers in a single unit: two layers of spread tow carbon fiber, one layer of aramid honeycomb in between, and a titanium layer with Ansuz Supreme coating.

The combination of all these materials gives this state-of-the-art diaphragm its unique properties. Spread tow carbon fiber is designed to ensure a skin with optimal rigidity in many different directions. This unique characteristic reduces sound-disturbing vibrations and resonances to an unprecedentedly low level. This also applies to resonances in the frequency range above 8 kHz. Since the diaphragm/speaker is used up to the 2.5 kHz range, disturbing resonances have been moved two octaves beyond the effective frequency range, ensuring an absolute minimum of resonances. Aramid honeycomb also has the best stiffness-to-weight ratio in the vertical direction.

Titanium has perfect resonance-control properties and supports a natural, organic sound from the diaphragm. With the Ansuz Supreme coating, the diaphragm skin is further acoustically optimized. This coating is applied to the titanium skin in a Hi-PIMS (High Power Impulse Magnetron Sputtering) machine to create the finest and most uniform layer of zirconium, followed by a layer of tungsten and finished with a layer of aluminum chromium nitride. This coating gives the music truly impeccable sound quality.

An iron-free magnet system with silver

The patented Børresen iron-free magnetic system has been refined even further. Børresen uses iron-free drivers in all of its speakers. Their inductance is approximately ten times lower than that of conventional drivers. This extremely low inductance has now been reduced further to an unprecedented new minimum level – approximately 12 times lower than the inductance level of conventional iron-based drivers. This is because silver has 6-8% better conductivity than copper, and Børresen has replaced the copper pole rings with in-house manufactured sterling silver rings.

To take full advantage of all the performance-enhancing sonic properties of the Børresen M series, all other metal parts in these premium speakers also undergo cryogenic treatment. This reduces their inductance by a further 6-8%. The result is complete musical purity. With their unadulterated authenticity of music reproduction, these premium speakers set a new and unmatched standard – clarity, refinement, and sound imaging at its absolute best.

Cryogenically treated for a huge improvement

Cryogenic treatment of all metal parts in the speaker results in a further significant improvement in conductivity – thereby releasing the finest and most subtle musical details. When metal parts undergo cryogenic treatment, they are subjected to extreme cooling. In the wake of this process, the metal structure contracts more and more. Alloying elements are pushed out of the grain structure of the metal, which now becomes very similar to a monocrystal. These structural changes in metal have a profound effect on its sonic properties, resulting in an increase in conductivity of 6-8%.

All metal parts in these speaker series undergo cryogenic treatment. The cryogenic treatment cycle requires a time window of 3 days. Within the first 24 hours, the metal undergoes a cooling process from room temperature to cryogenic temperatures. During the next 24 hours, the metal parts are kept at temperatures around -196°C (-321°F) before the temperature, over the following 24 hours, gradually returns to room temperature. The gradual cooling and heating are crucial to avoid thermal stress. The process strengthens and compresses the grain structure of the metal parts and reduces the inherent residual stress that occurs when metal solidifies from its liquid phase to a solid phase.

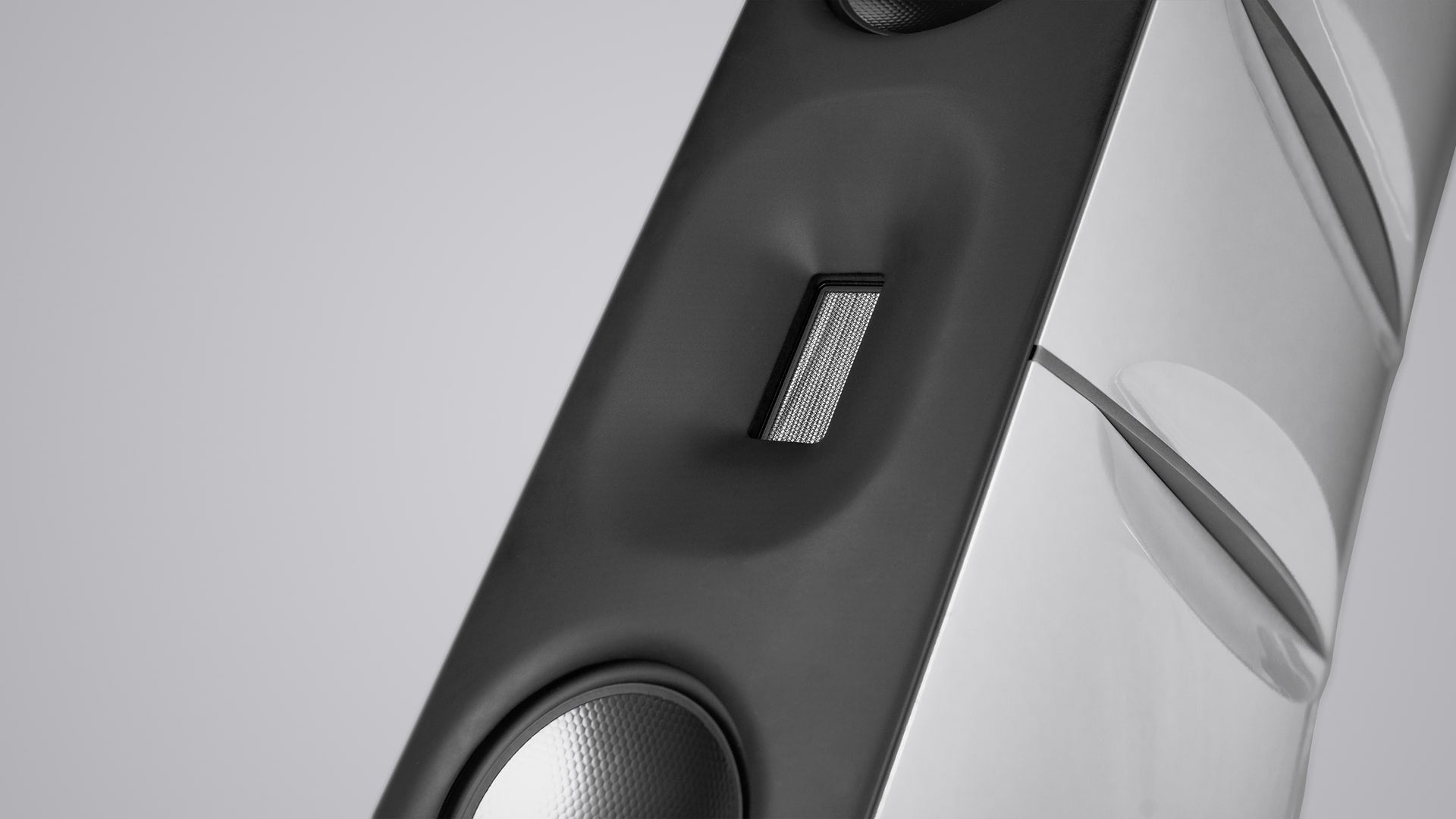

Børresen tweeter with extraordinary efficiency

Elaborate finite element methods have been used to linearize and optimize the magnetic flux field, in order to facilitate the driver’s movement and ensure high efficiency and outstanding linearity.

The efficiency of this closed ribbon tweeter amounts to an extraordinary 94dB and operates from approximately 2.5 kHz and upward. The moving mass is extremely low at 0.01 grams. The fully concealed tweeter has the capacity to operate at incredible speed, which is an absolute prerequisite for unlocking the most subtle and refined sonic details in any kind of music. The enormous robustness of this tweeter allows it to handle extremely high transient peaks without any ear-fatiguing interruptions. No transformers are used.

Series connection for a coherent system

Børresen speakers are equipped with a series connection configuration. The reason for this is that drivers share the same electrical current in the crossover region. As a result, the electrical current is phase-locked across the crossover region. Unlike standard parallel filtering, where each driver receives its own frequency and phase content, the new series filters work by redirecting out-of-band currents around the current flows, creating a much more coherent system. This unparalleled and innovative technological approach takes your music to a new echelon of acoustic delight.

For the crossover filter, Børresen has also gone to great lengths to find the best and most sophisticated state-of-the-art components. The coils are foil types wound with paper insulation and vacuum-impregnated with resin to make them mechanically extremely solid and stable.

For crossover capacitors, several rows of small military-spec stacked-foil types have been used. They have the best mechanical stability and the lowest inductance of any type of capacitor on the market (and they also sound wonderful). For tweeter damping resistors, metal-strip types are used, as they have by far the lowest noise figures and additionally very low thermal variation.

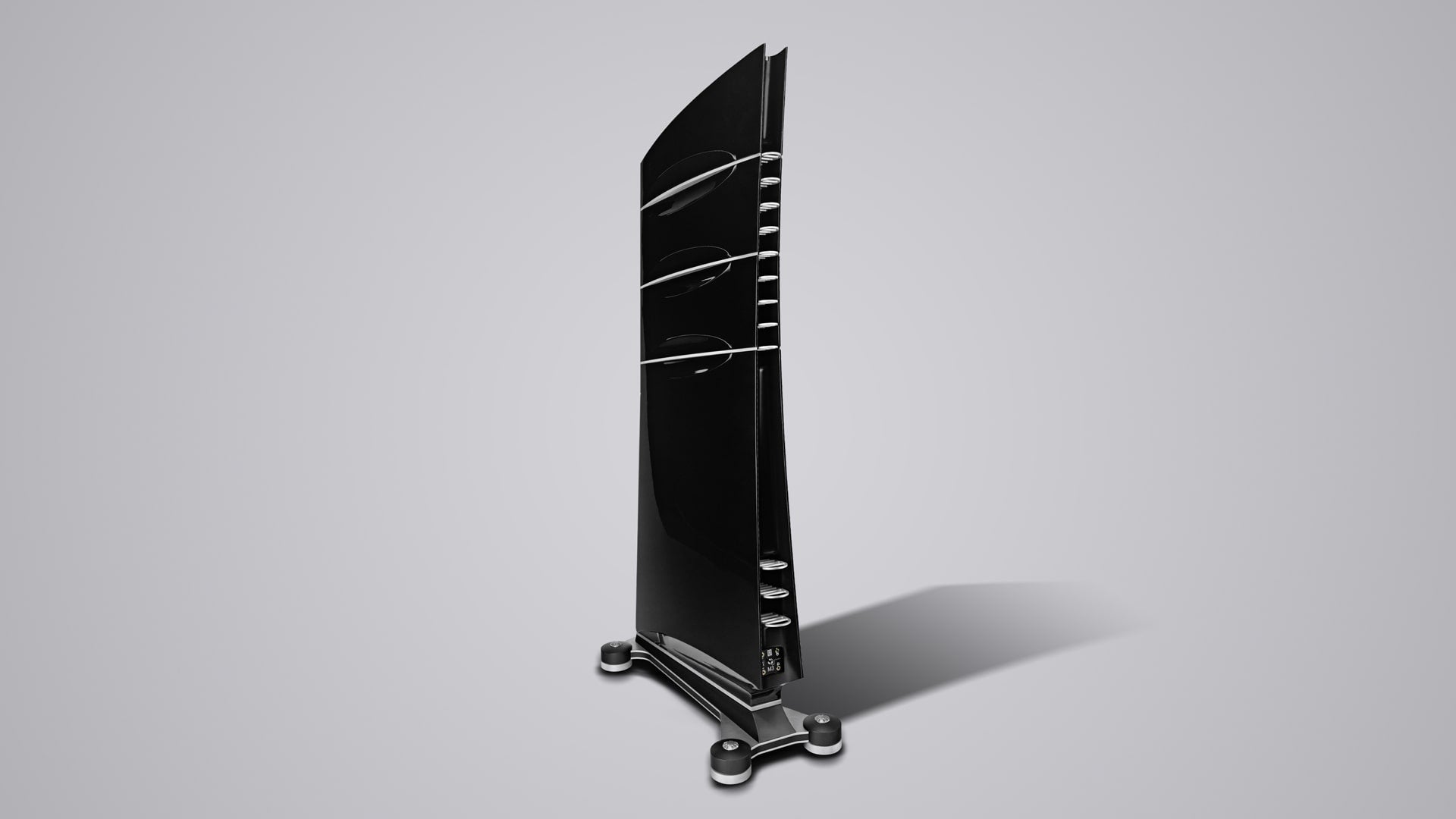

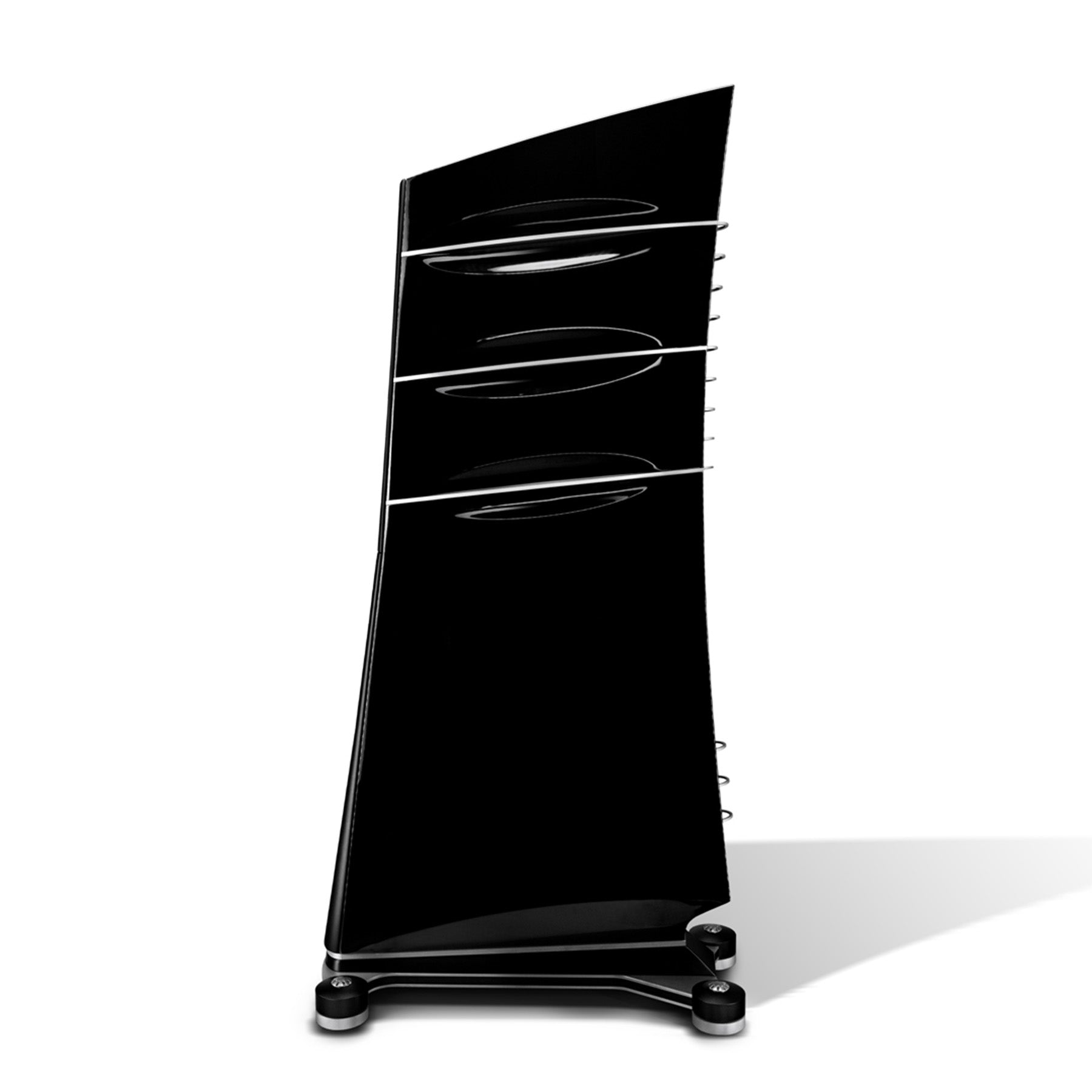

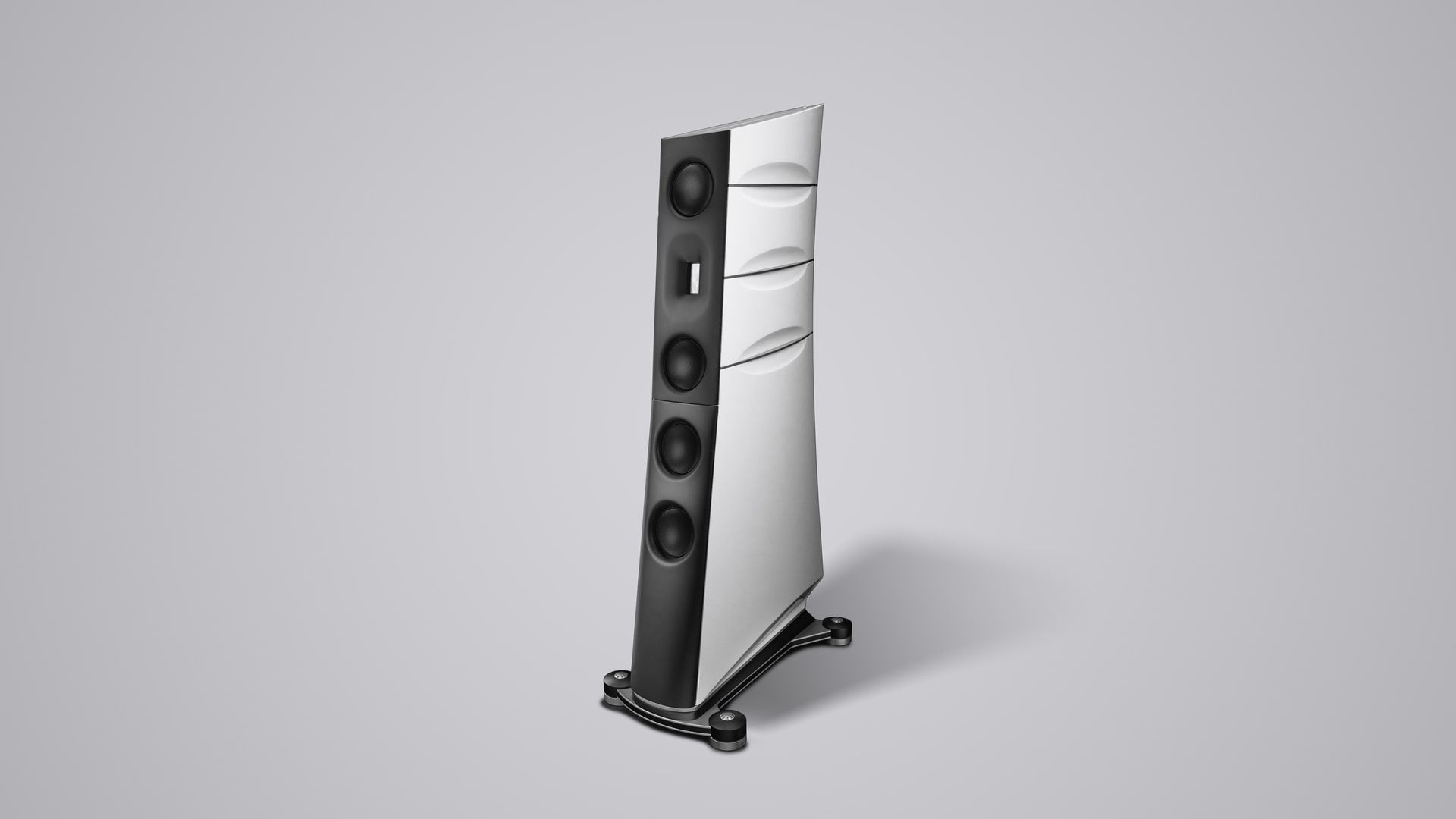

A redesigned and reinforced cabinet

The design is an evolution and optimization of Børresen’s fantastic 0-series cabinet. To ensure even higher performance, the M3 cabinet is constructed with an additional 5 mm of reinforced, block-milled, pressure-formed wood structures. In addition, braces are built into the sides of the speaker to give the cabinet even more rigidity and mechanical stability. The tweeter and bass sections are equipped with matched terminals to ensure the highest efficiency. The cabinet is finished in black piano lacquer.

Internal cabinet M – Improves balance

The larger cabinet has also improved ventilation behind the bass/midrange nozzles. This results in less compression and therefore a much faster and more agile speaker driver, which has a significantly positive impact on the overall soundstage. In addition, the bass is equipped with a bass reflex section inside the cabinet, ensuring a dynamic and harmonious balance between midrange and bass.

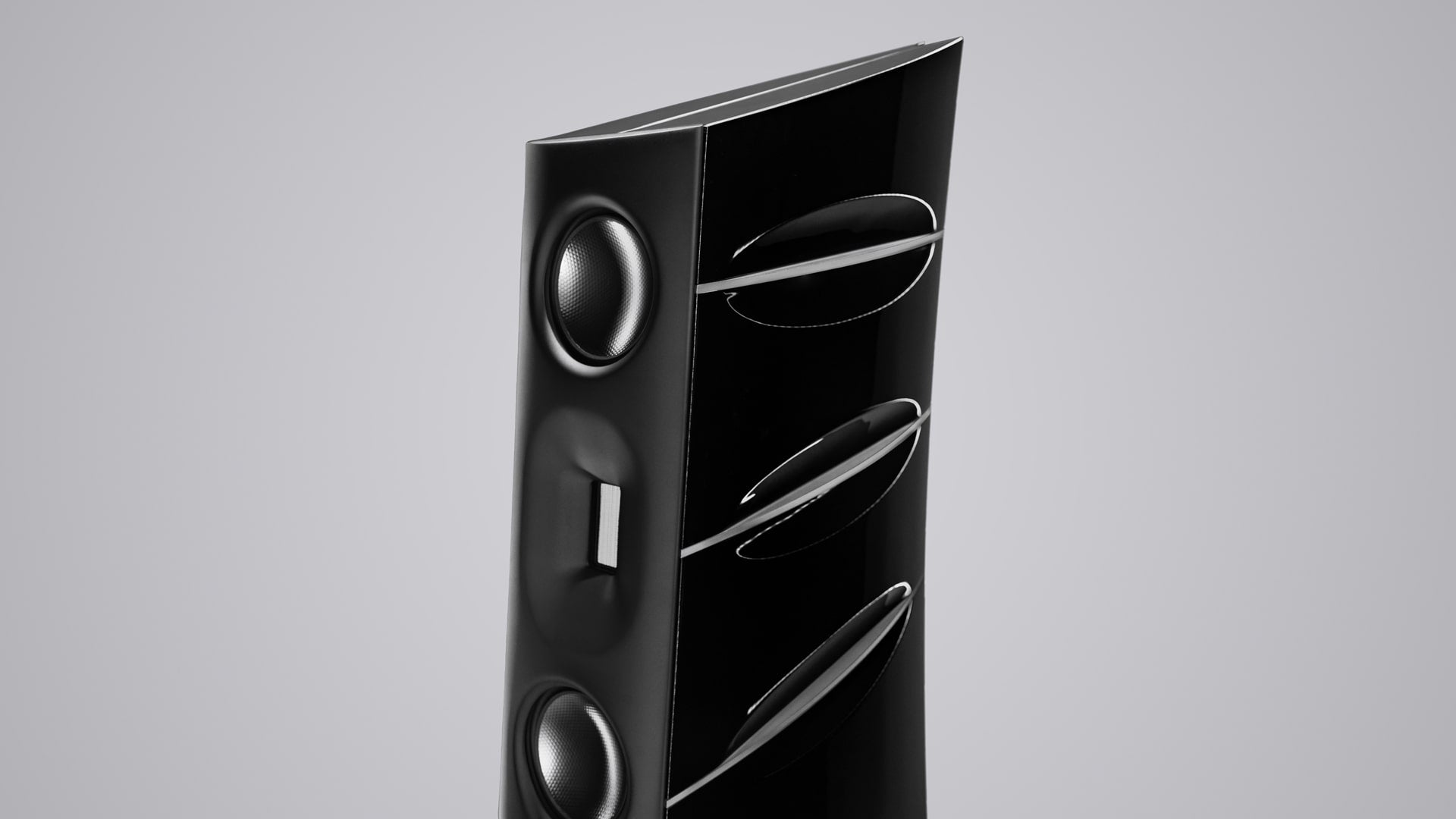

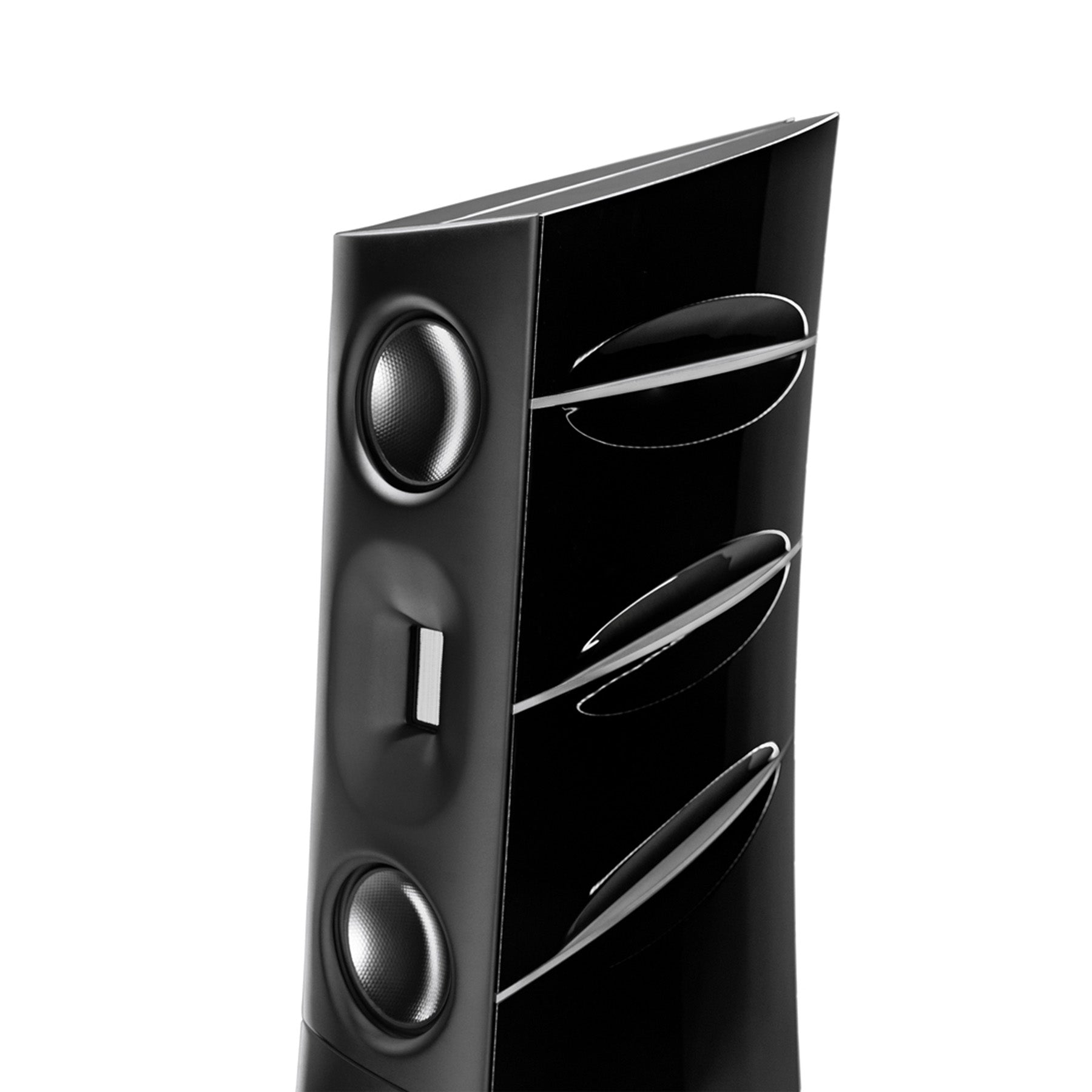

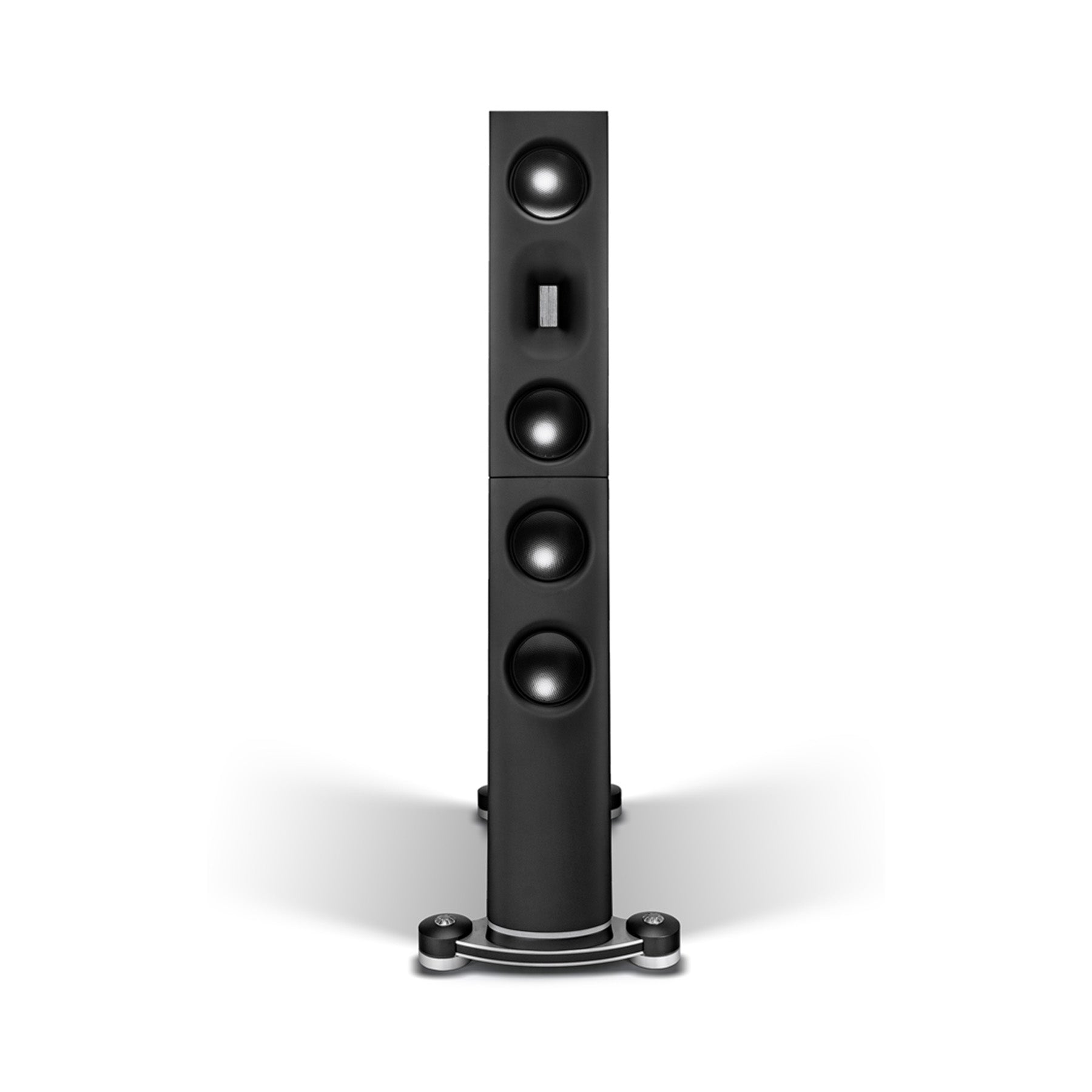

The M3 driver configuration

M3 is equipped with 4 unique 4.5″ M series units. These drivers are connected in series in pairs, so that one pair functions as a bass/midrange and another pair functions as a bass speaker driver. This approach ultimately results in increased speed, precision, and depth, enriching the speaker with far greater musicality.

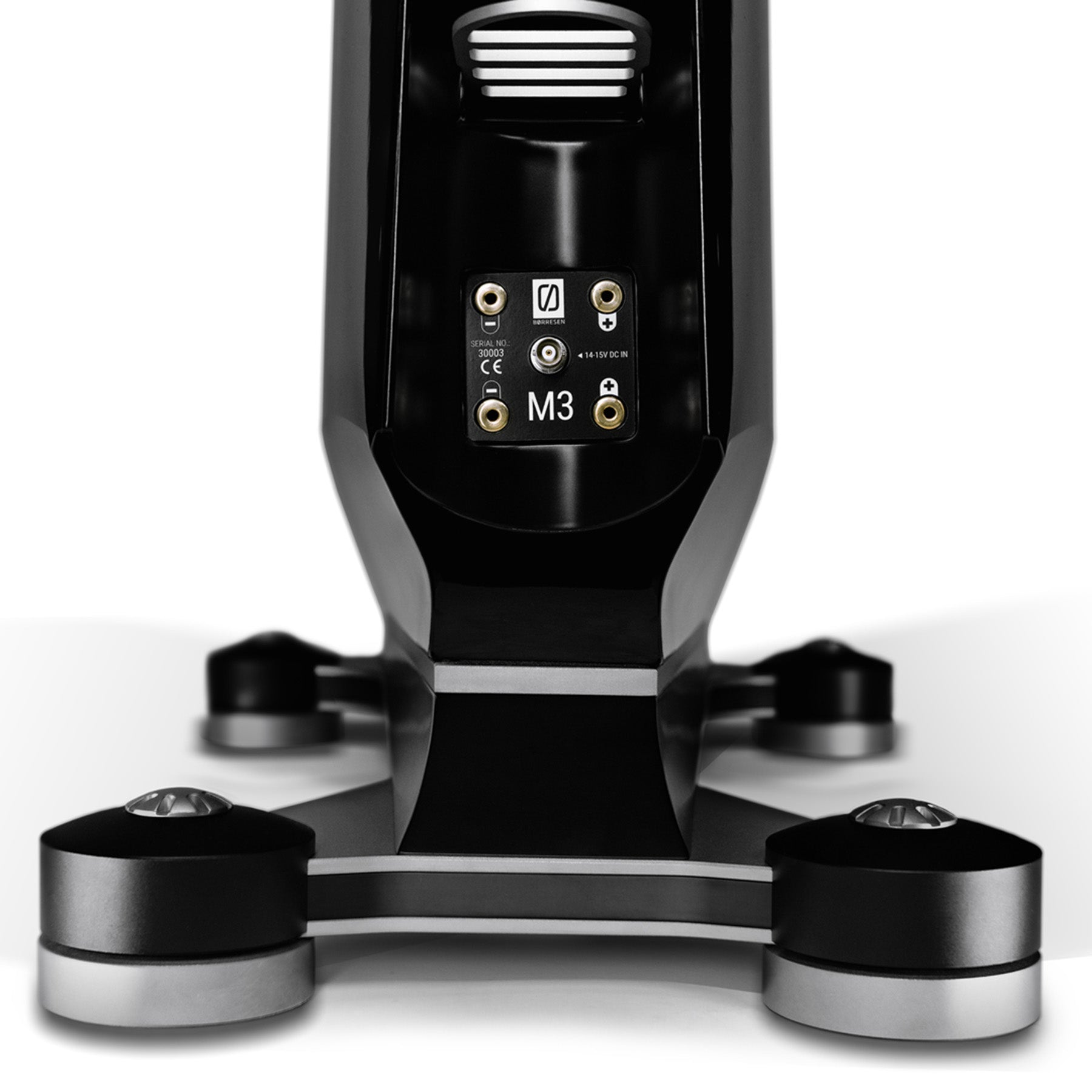

Bi-amping

Both M3 and M6 offer the possibility of bi-amping, allowing you to power the bass and midrange/tweeter sections individually. This not only provides sufficient power to each section, but also results in a cleaner, more precise sound.

These speakers are designed with two types of bi-amping in mind. The first is speaker-crossover bi-amping. The frequency between the bass section and the midrange/tweeter section is optimized in accordance with the M3 and M6 design, so it delivers the best performance.

The second option is active crossover bi-amping, where you can adjust the crossover frequency yourself. This type of crossover is the optimal solution for fine-tuning your speakers according to the acoustic characteristics of your listening room, allowing you to control the amount of bass and the balance between bass and midrange/tweeter. To further enhance your listening experience, Børresen’s sister company, Aavik Acoustics, has developed a high-end Analog Active Filter that works seamlessly with these new speaker models and delivers the ultimate in precision and clarity.

Internally wired with Ansuz Gold Signature

M3 is equipped with Ansuz Gold Signature cables, representing the very pinnacle of audio cable technology. These cables ensure extremely clear, natural, and authentic sound reproduction that lets you hear every single nuance of your music.

The Tesla Coil principle

Børresen M3 uses Tesla Coil technology that eliminates noise and improves musical clarity. This advanced technology works by generating opposite voltages to neutralize noise, resulting in significantly improved sound reproduction.

Active Square Tesla Coils

With active square Tesla coils integrated into the circuit boards, M3 achieves impressive noise reduction, ensuring cleaner and more precise sound reproduction.

Analog Dither Technology 3rd Generation

The third generation of Ansuz analog dither technology ensures an even greater improvement in sound quality by amplifying the musical signal and reducing background noise, providing an even more detailed and open listening experience.

Anti Aerial Resonance Coil Technology

M3 is equipped with Anti Aerial Resonance Coil Technology, which effectively eliminates airborne noise and ensures clean signal transmission without interference.
