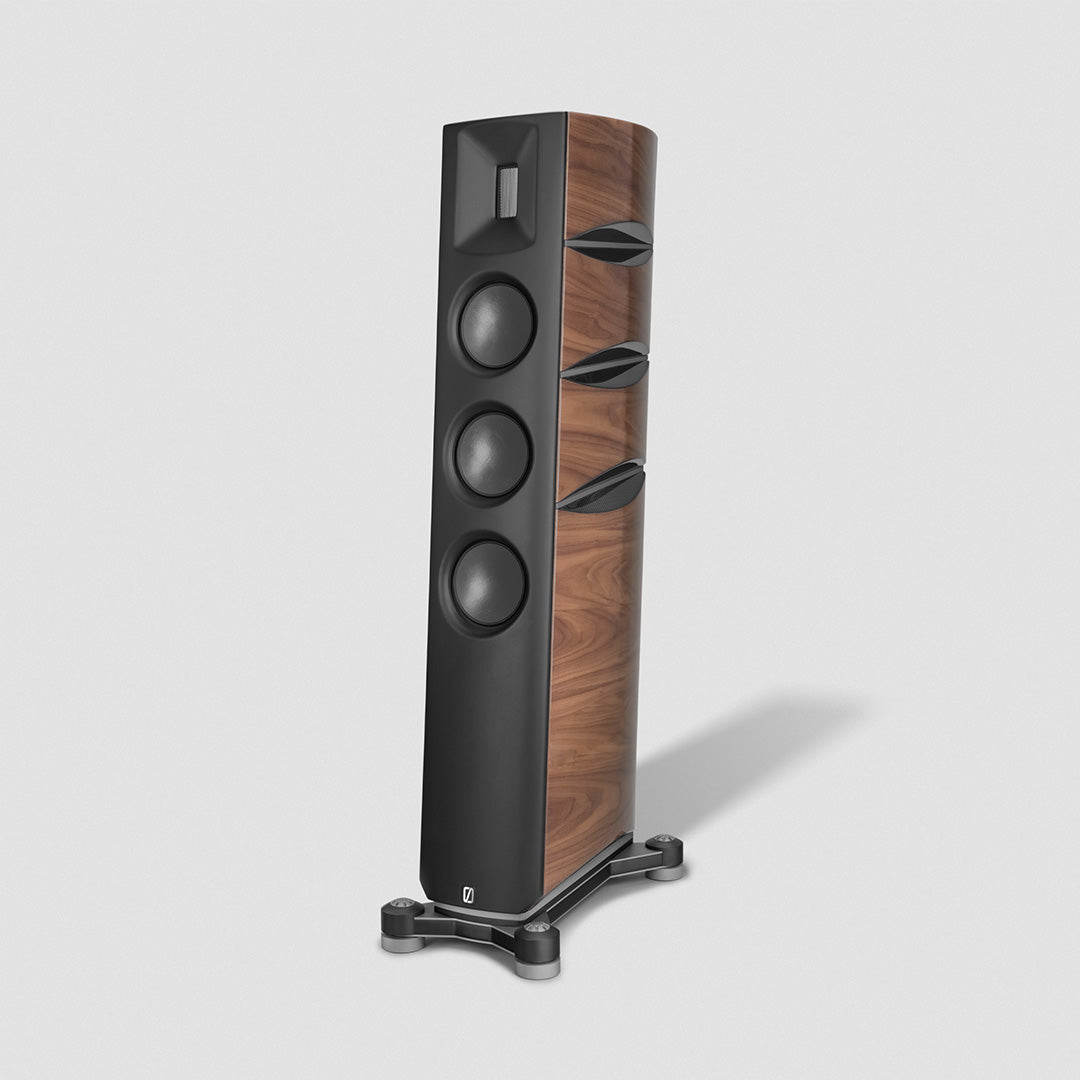

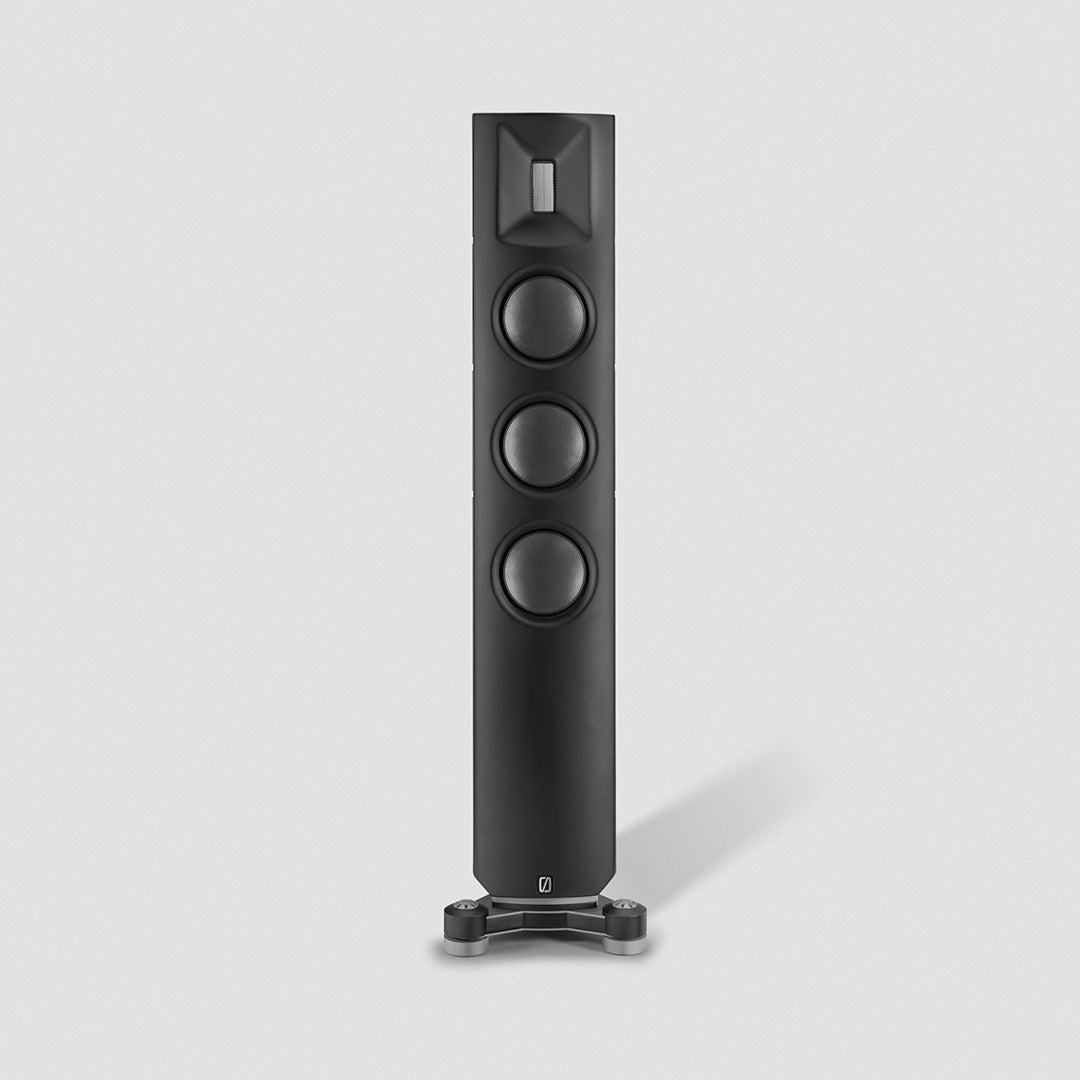

Børresen T3 Silver Supreme Edition

Børresen T3 Silver Supreme Edition

With its Silver Supreme Edition speaker, Børresen ensures a transparent and authentic musical performance. The aesthetic design of the cabinet and stand makes the speaker appear as a piece of art in itself. The Silver Supreme edition is the flagship among Børresen models.

HIGHLIGHTS

• Frequency range 30Hz - 50KHz
• Sensitivity 86 dB / 1W
• Impedance 6 ohms
• Recommended amplifier >50W
• Cryo treatment ✓
• 1 x Tweeter Børresen RP94 Ribbon Planar Tweeter

• Bass/Midrange 5" Børresen IronFree5 driver

Børresen IronFree5 Titanium SSE driver

Børresen has equipped the Silver Supreme Edition of the T-series speakers with 5” units, where the baskets are made of titanium. This material provides both high strength and effective damping properties. Using computer-optimized FEM calculations, Børresen has 3D-optimized the shape of the baskets. This ensures that the baskets do not impede the airflow from the membrane’s backward movements. The result is that the baskets remain acoustically invisible and contribute to a cleaner sound experience.

PATENTED IRONLESS MAGNETIC MOTOR

Børresen has replaced the copper rings in the speaker with handmade silver rings, specially designed by Børresen himself. This reduces the inductance significantly. The inductance in Børresen speakers is already approximately 10 times lower than in conventional models, but in the Silver Supreme Edition it is a full 12 times lower. All metal components undergo a cryogenic treatment, which further reduces the inductance by 6-8%. The result is a clean, clear and refined sound image, placing the Silver Supreme Edition in the absolute high-end and setting a completely new standard.

T-series diaphragm

Børresen has developed a membrane that consists of three layers, laminated into one unit. An aramid honeycomb core is sandwiched between two layers of spread tow carbon fiber. The combination provides a moving surface with unique properties. The carbon fiber layers ensure high stiffness in multiple directions. The aramid core has an impressive stiffness to weight ratio in the vertical direction. Børresen has also added graphene and boron whiskers to the epoxy that binds the layers together. This reinforces the connections between the carbon fibers and makes the entire membrane stronger and more stable – without adding weight. The result is a very light, yet stiff and quiet membrane.

Cryogenic treatment for optimal sound image

Børresen uses cryogenic treatment of all metal parts of the speaker to ensure further significant improvement in conductivity. When metal parts undergo cryogenic treatment, they are exposed to extreme cooling. In this process, the metal structure contracts more and more. Alloying elements are pushed out of the grain structure of the metal, which now becomes very similar to a single crystal. The result is that the metal component becomes stronger, the internal stress during solidification from liquid to solid is reduced, and the conductivity increases.

The Børresen tweeter

Børresen has used advanced FEM calculations to make the magnetic field more linear and efficient. This gives the unit easier movement, high efficiency and precise reproduction. The tweeter has an efficiency of a whopping 94 dB and plays from approximately 2.5 kHz and up. The moving mass weighs only 0.01 grams, which makes the tweeter extremely fast. This is crucial for reproducing even the finest details in the music. The tweeter is built to withstand very high levels without distortion. It can handle powerful transients without causing listening fatigue. Børresen has completely avoided the use of transformers in the design.

Crossover - unique and technically advanced solution

Børresen loudspeakers are equipped with crossovers in series. This means that the units share the same electrical current in the crossover area. The result is that the current remains phase-locked when the signal changes between the units. Unlike conventional parallel filters, where each unit receives its own frequency and phase signal, the serial filters route signals outside the working area around the units. This creates a much more coherent system. This unique and technically advanced solution takes the music experience to a new level.

For the crossover, Børresen has selected some of the market's most advanced components. The coils are of the foil type, wound with paper insulation and vacuum impregnated with epoxy resin. This gives them very high mechanical stability. The capacitors are made of small military-specification stack-foil types. They have the best mechanical stability and lowest induction on the market – and they sound fantastic. To attenuate the treble, Børresen uses resistors with metal strips. They have a significantly lower noise level than other types and change minimally with temperature changes.

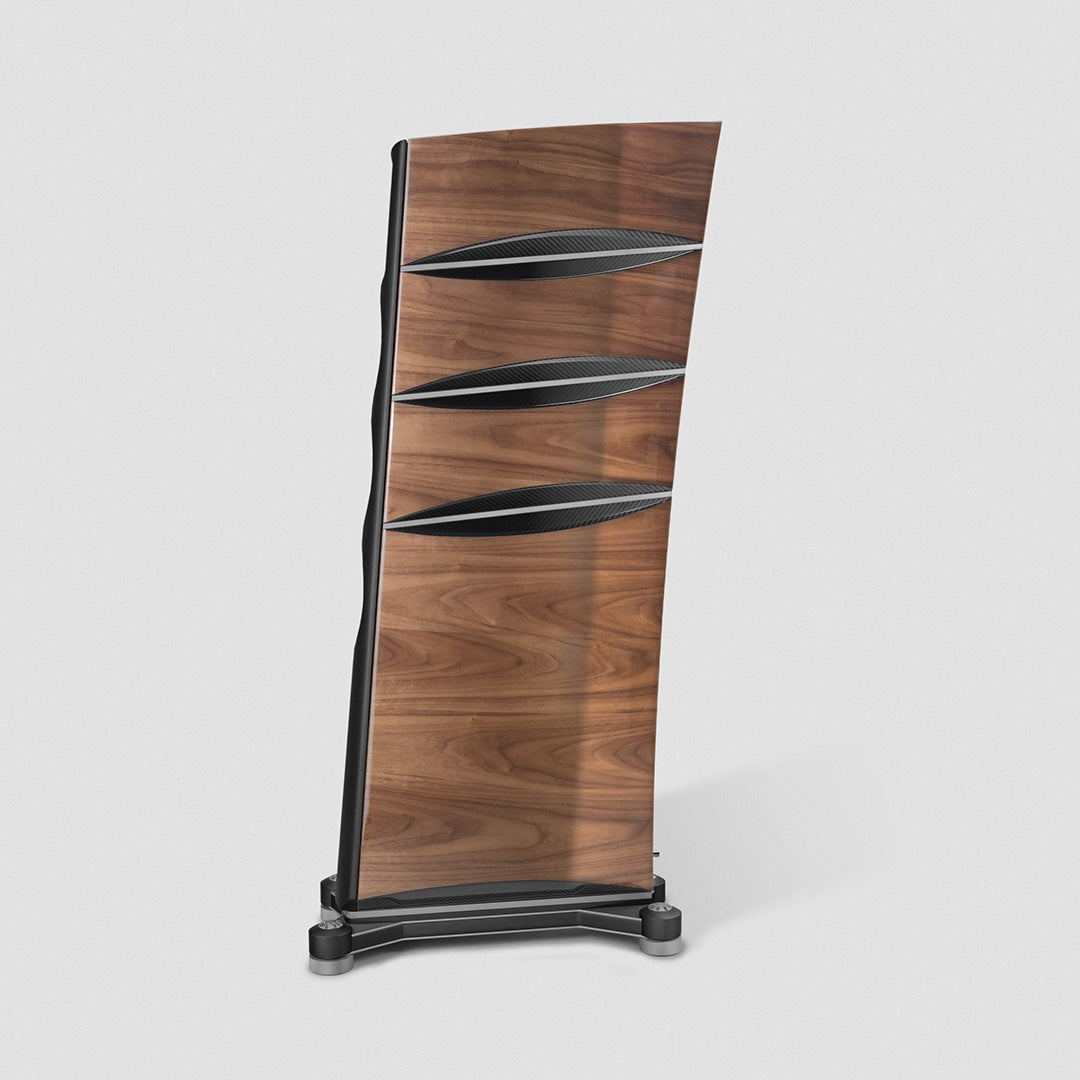

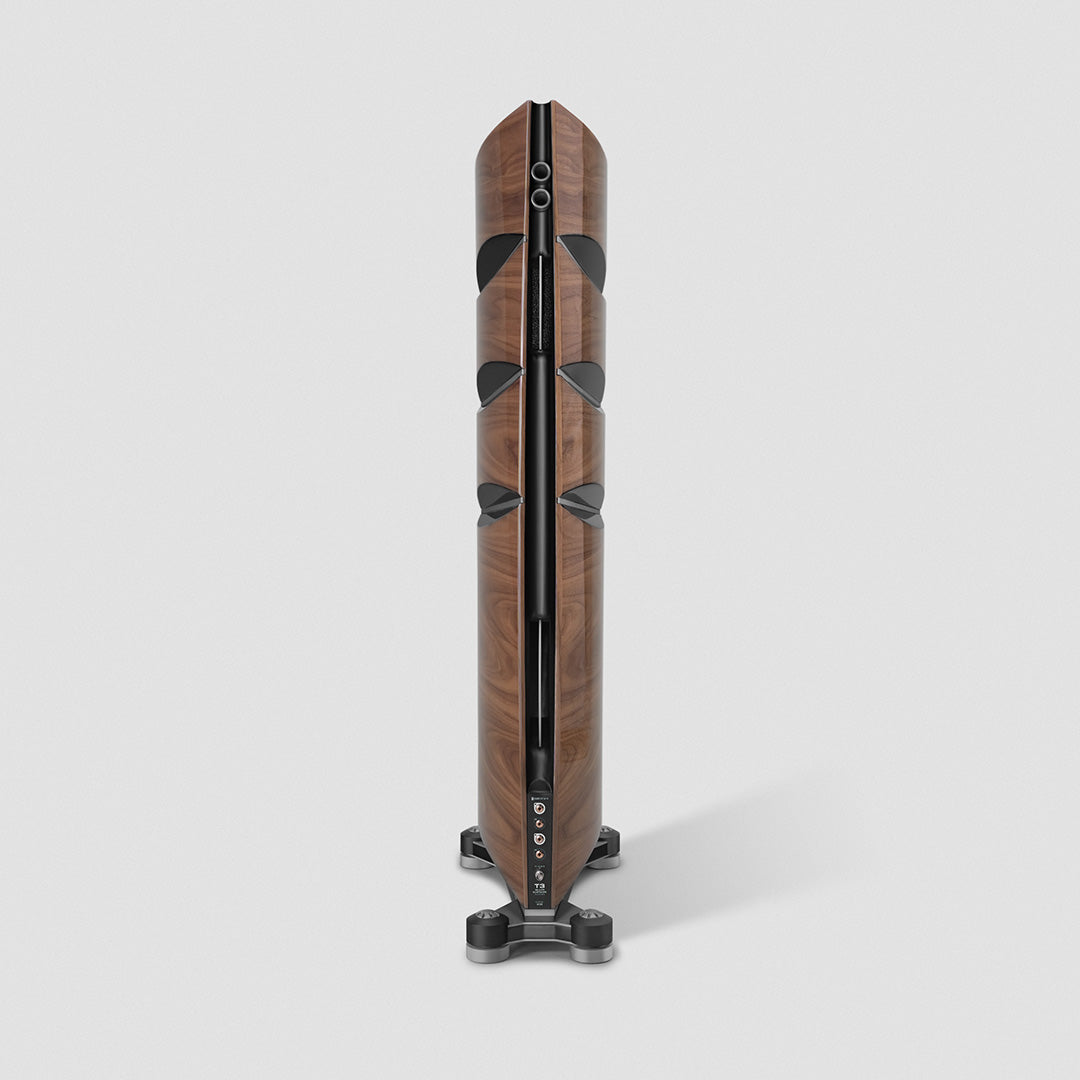

Advanced cabinet design for maximum performance

The Børresen T-series combines high-gloss lacquer with real wood veneer. Solid wood stiffeners, milled into blocks, and carbon fiber reinforcements increase both rigidity and airflow. A rear-facing ventilation system ensures that the units can discharge pressure effectively. This reduces distortion and the build-up of excess pressure in the cabinet. The cabinet construction is carefully thought out and provides an open, spacious and dynamic sound. At the same time, the speaker has a modern and elegant expression – and takes up minimal space in the room.

Ansuz Gold Signature - The most advanced cables

Ansuz Gold Signature cables pave the way for pure, authentic sound production. It is the most innovative and advanced audio cable technology on the market.

Tesla Coil Principle

The Børresen T3 Silver Supreme Edition uses Tesla Coil technology that eliminates noise and improves musical clarity. This advanced technology works by generating opposing voltages to neutralize noise, resulting in significantly improved sound reproduction.

Active Square Tesla Coils

With active square Tesla coils integrated into the circuit boards, The T3 Silver Supreme Edition features impressive noise reduction, ensuring a cleaner and more accurate sound reproduction.

Analog Dither Technology 3rd Generation

The third generation of Ansuz analog dither technology ensures an even greater improvement in sound quality by amplifying the musical signal and reducing background noise, providing an even more detailed and open sound experience.

Anti Aerial Resonance Coil Technology

The Børresen T3 Silver Supreme Edition is equipped with Anti Aerial Resonance Coil Technology, which effectively eliminates airborne noise and ensures clean signal transmission without interference.
